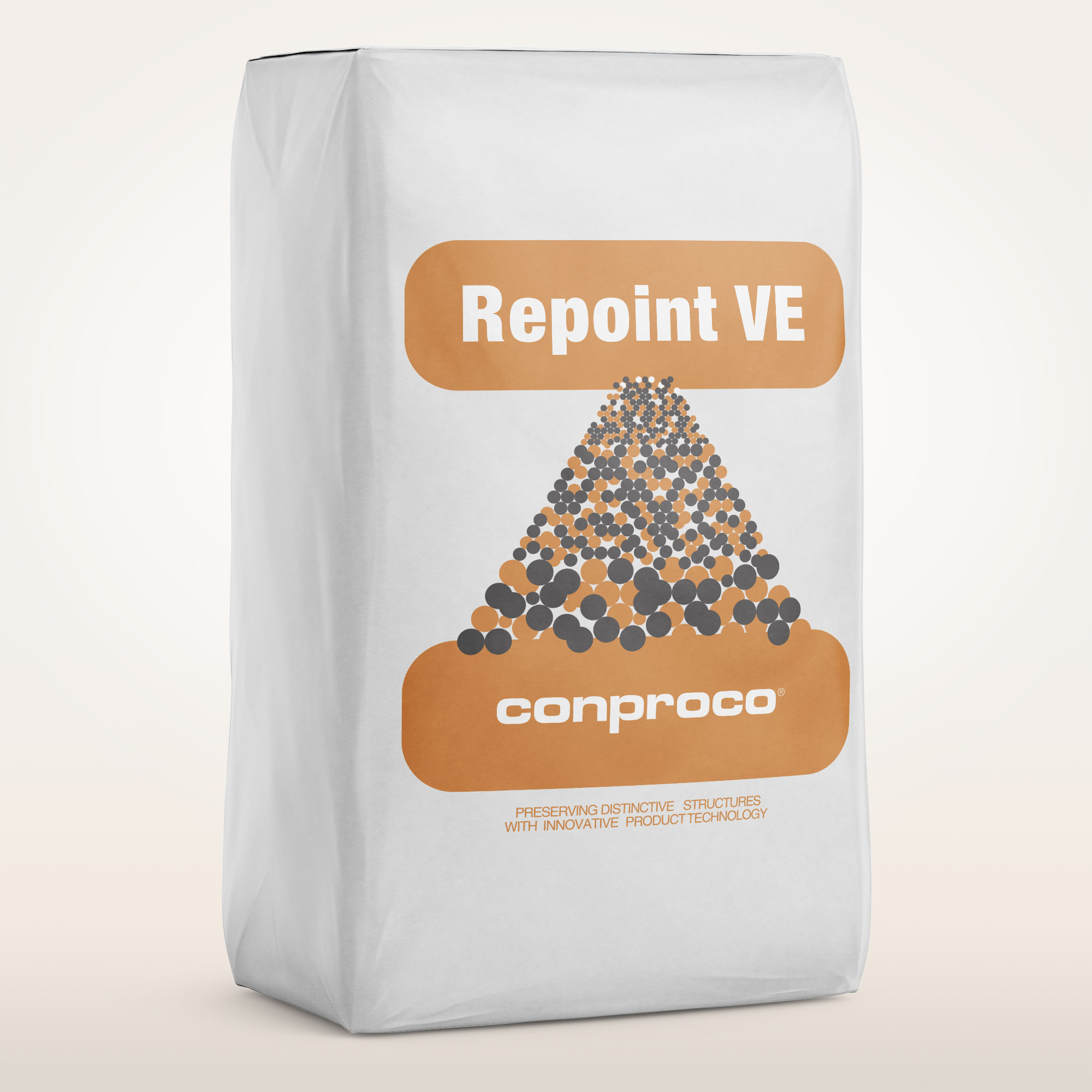

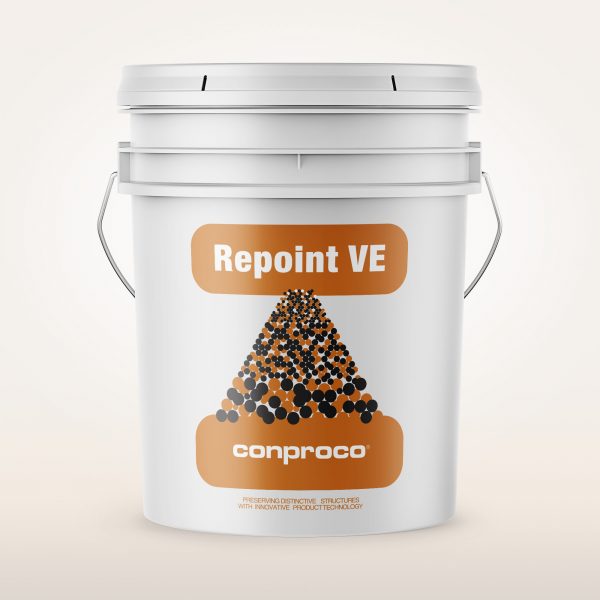

Repoint masonry with this color-matched Type N and Type O mortar formulated to be more fluid for application using a grout bag. Available in 11 standard colors and custom color matching.
Where to use:
Use with Repoint.
How to apply:
Enables bagging. Additional InformationMinimize InformationPerformance Characteristics
- Developed for historic structures but can be used anywhere a Type O or Type N mortar is required.
- Suitable for joint replacement on stone, brick, book tile, terracotta, and cast stone.
- Maintains integrity of repair, resists cracking.
- Will not cause damage to structure by restricting moisture vapor flow.
- Easy to batch in less than full pallet quantities.
-
- Resistant to deicing salts, chloride, chemical attack, and environmental pollution.
- Available VE (Viscosity Enhanced) formulas to allow for pumping, bag install or when greater workability, extended working times are desired.
Description
- RePoint is a Portland/Lime based mortar without the additives often found in masonry cement-based mortars. RePoint does not contain any polymers; it is a proprietary blend of Portland, lime, and sand.
- Custom color-matching available.
- 11 standard Masonry Restoration colors.
Preparation
- Remove all loose and/or deteriorated material as well as any surface contaminants such as oil, paint, grease, etc.
- Saturate substrate with clean water (saturated surface dry/SSD), with no standing water prior to Application to achieve proper curing.
Mixing
- Empty contents of the bag or pail into an appropriate mixing vessel.
- Add 4 to 5 parts powder to 1 part water depending on joint size and shape to achieve proper consistency.
- Allow to prehydrate for 30 minutes to minimize shrinkage if required by specification.
- Add additional water (half pint) to achieve desired consistency.
- Do not retemper after desired consistency has been achieved.
Application
- Apply using approved pointing technologies (see ASTM E2260) and finish with appropriate tooling.

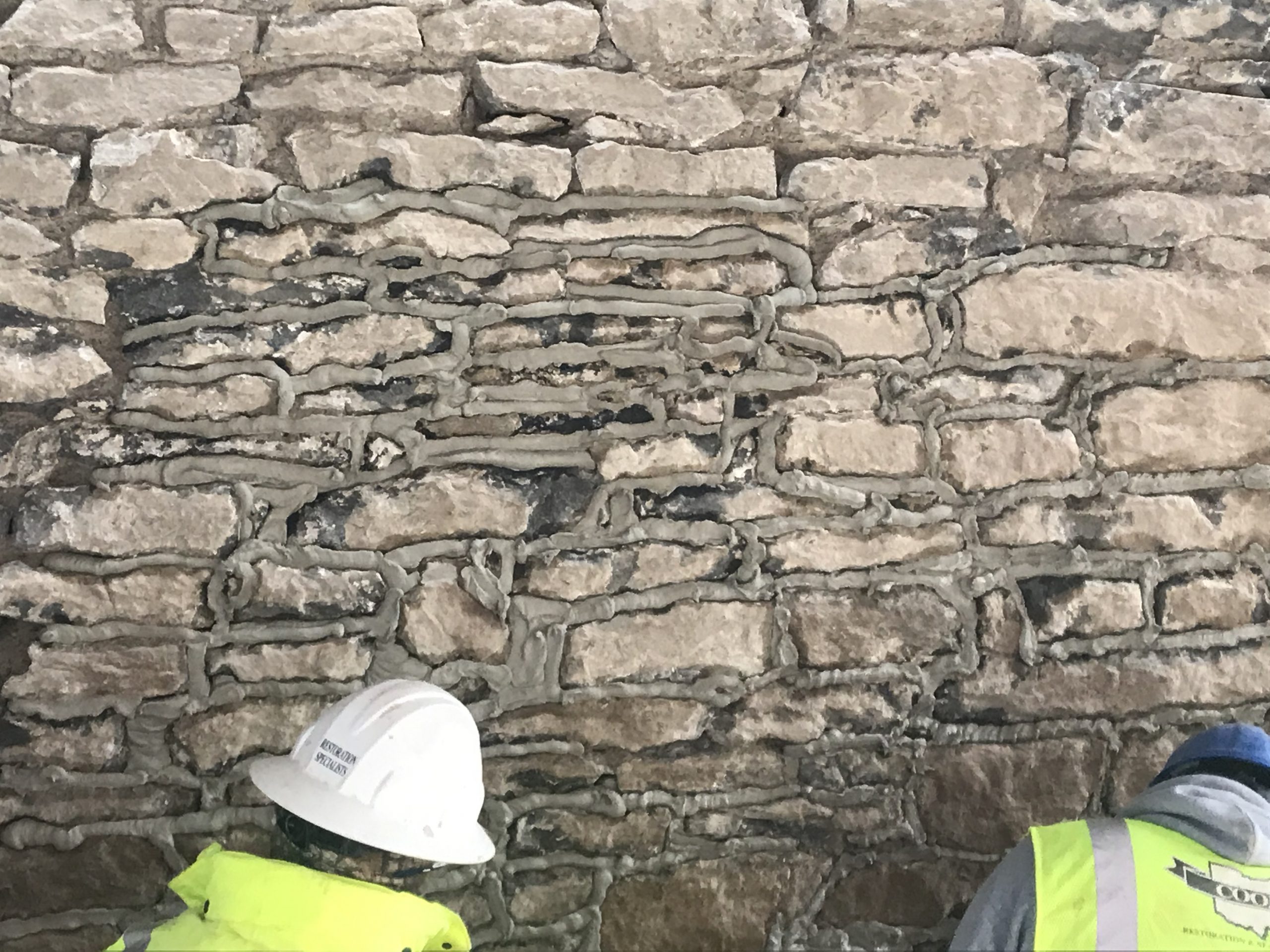

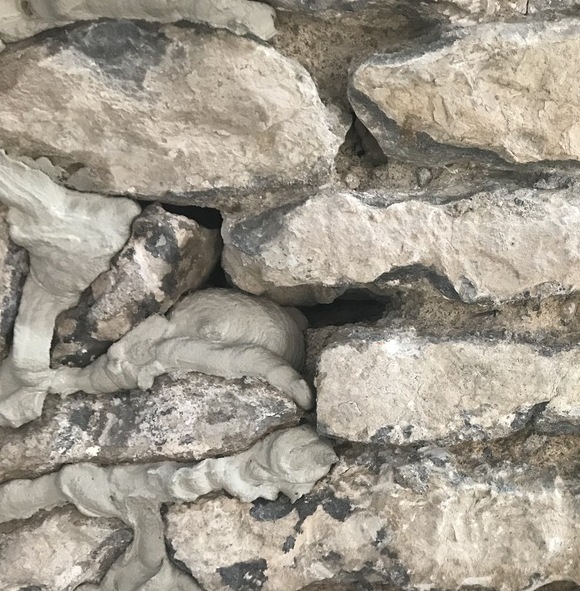

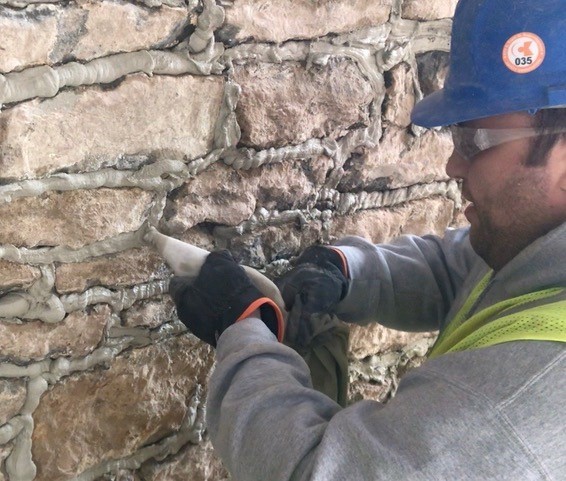

- RePoint VE is designed to be installed using a grout bag, mortar pump, or grouting sponge where applicable. Contact your Conproco rep for details.
- Temperatures should be between 40° and 90°F.
- Protect from rain and excessive moisture for 12 hours after installation.
- Protect from below-freezing temperatures for 48 hours after installation.
Clean Up
- When dry enough not to smear – cut mortar “tags” from the surface and then brush across joints with a dry, soft bristle brush. If a rougher texture is required a stiffer bristle brush can be used.
- Cleaning with water and chemicals can be performed 3 days after curing. Test cleaning methods prior to beginning to ensure they will not adversely alter the color or texture of the joints.
- Harsh acids may damage the integrity of the mortar if overused or not fully neutralized. Chemical manufacturers should be consulted prior to testing cleaning methods.
- Clean tools and equipment with water immediately after use.
- Cured material must be removed mechanically.
Curing
- Mist the substrate after initial set (24 hours) to ensure hydration and minimize shrinkage cracking.
Theoretical Yield
1 Bag/Pail (50 lb) |
Joint Width |
Joint Depth |
Lineal Feet |
---|---|---|---|
1 Bag/Pail (50 lb) |
1/4 inch |
5/8 inch |
442 |
1 Bag/Pail (50 lb) |
3/8 inch |
3/4 inch |
245 |
1 Bag/Pail (50 lb) |
1/2 inch |
1 inch |
138 |
Caution
- May cause eye and skin irritation.
Health and Safety
- Product is alkaline.
- Do not ingest.
- Avoid breathing dust.
- Avoid contact with skin and eyes.
- Refer to Safety Data Sheet (SDS) for additional information.
- Keep out of reach of children.
First Aid
- In case of skin contact, wash thoroughly with soap and water.
- For eye contact, flush immediately with water for at least 15 minutes and contact a medical professional.
- For respiratory problems, remove person to fresh air.
Disposal
- Dispose of material in accordance with local, state and federal regulations.
- Technical Data
- Data Bulletin
- CSI Spec
- Competition
- FAQs
- Safety Data Sheet
- Color Card
Type O | Type N | ||
Physical state and appearance | Dry powder with aggregate | Dry powder with aggregate | |
Base | Portland Cement/Lime Blend | Portland Cement/Lime Blend | |
pH | Wet mix | >12 | >12 |
Aggregate type | Graded Sand | Graded Sand | |
Compressive strength at 28 days | ASTM C109 | 350 - 425 psi | 750 - 1000 psi |
Flow | ASTM C230 | 110% +/- 5% | 110% +/- 5% |
Conproco | Cathedral Stone | Edison Coatings | US Heritage | Keim |
---|---|---|---|---|
Matrix | Jahn M70 | Custom System-45 | HL-60 or HS-60 | Restauro Giess or Fuge |
Matrix VE | none | none | none | none |
Matrix Superfine | Jahn M100 & M120 | none | TB-15 | none |
Matrix TR | none | Thin-Fill 55 | none | Restauro-Top |
ISR CM | Jahn M90 | none | none | none |
Repoint | Jahn M110 | Lime Mortar | HRM Type – N only or Lime Mortar or Putty | none |
Repoint VE | none | none | none | none |
Injection Grout | Jahn M30/40 | Pump X-53 | IG-10 | Concretal Fine Filler |
Terra Color | CSP Mineral Silicate | Aquathane-UA210 | none | Soldalit |
Terracotta Finish | CSP Terra Cotta Glaze | none | none | none |
M3P | Minersal Silicate Coating | none | none | Keim Granital |
M3P-X | Fixative | none | none | Fixative |
M3P Overcoat | none | none | none | Soldalit TDS |
What makes Repoint unique?
Color-matching repointing mortars by adding color in the field can produce shades of color that vary from batch to batch. Factory blended mortars are more consistent but often require a higher minimum quantity than a project requires. Repoint can solve both issues. Repoint is a color matched repointing mortar (Type N & Type O) available in quantities from a single 50 lbs pail to unlimited skids in 50 lbs bags.
Do Repoint and Repoint VE meet industry standards for repointing mortars?
Both Repoint and Repoint VE meet the requirements of ASTM C387 and C270.
