Where to use:
Combines scratch and brown coats of traditional stucco systems into one coat stucco base and finish.How to apply:
Trowel or spray applied. Additional InformationMinimize InformationPerformance Characteristics
- Waterproof barrier Passes ASTM E514.
- Long term protection Density and thickness provide resistance to carbonation.
- Durable Resistant to weathering action, excellent freeze/thaw stability and abrasion resistance.
- Breathability Allows moisture to diffuse, preventing damage from moisture build-up in wall system.
- Impact resistance Significantly more resilient than EIFS.
- Economical Combines scratch and brown coat to one application.
- Smooth finish Ready for roller, spray and trowel applied decorative coatings such as, Conpro Stucco, Conpro Lastic and Color Coat.
Surface Preparation
Conproco Impact Wall System- Remove loose and deteriorated material, laitance, dirt, dust, oil and any surface contaminants that will inhibit proper bond.
- Repair spalled areas, static cracks and voids with Conpro Set or Conpro One Coat.
- Substrate should have open-pored and textured surface.
- Apply Conpro Start where a consolidant is of benefit.
- Saturate substrate with clean water, (saturated surface dry/SSD). Wall should be wet when Conpro One Coat is applied.
- For best results on concrete grind or abrasive blast (CSP 3). Refer to ICRI Surface Preparation Guide 03732 for information about Concrete Surface Preparation (CSP).
- Substrates must be structurally sound, sheathing must be firmly fastened and comply with all applicable building codes.
- Place building wrap or air barrier depending upon type of substrate.
Priming
- No priming is required under normal circumstances.
Mixing
- Mechanically mix using a low speed drill (400 – 600 rpm) and mixing paddle or mortar mixer.
- Pour 3.5 – 4 quarts of potable water into a clean mixing vessel to each 50 lb. bag of Conpro One Coat.
- Mix continuously for 3 minutes to a uniform, lump-free consistency.
- Add up to 2 pints of additional water if needed.
- Allow to “breathe” for 1 minute and remix for 1 minute. This will improve workability and open time.
- Do not over mix, as this will entrain air and cause damage to the glass fibers.
Application
Conproco Impact (direct applied to concrete and masonry)- At the time of application, surfaces should be saturated surface dry (SSD) but hold no standing water.
- Trowel or spray apply material to a uniform minimum of between 3/8 inch and a maximum 7/8 inch.
- Apply additional coat of 1/16 – 1/8 inch to achieve a level plane where desirable.
- Place trim accessories (expansion joints, corner bead, etc.) as specified.
- Mechanically fasten self-furring diamond mesh metal lath (complying with ASTM C841 and ASTM C847) within the confines of the panels created by the trim accessories. Make sure to overlap the flanges of the trim accessories.
- Trowel or spray apply material to a uniform minimum of 3/16 inch, to completely cover the lath.
- Apply additional material up to 1 inch thick for added impact resistance.
Curing
- Keep damp with a fine mist of water for 24 hours.
- Protect from direct sunlight, wind, rain and frost during curing period.
Clean Up
- Clean tools and equipment with water immediately after use.
- Cured material must be removed mechanically.
Coverage/Yield
- 16 ft.² @ 3/8 inch.
Product Handling
Packaging- 50 lbs. paper bags.
- 12 months when properly stored.
- Transport and store in cool, clean, dry conditions in unopened containers.
- High temperature or high humidity will reduce shelf life.
Limitations
- Do not apply unless substrate and ambient temperature can be maintained at a minimum of 40°F for 24 hours. Refer to ACI Cold Weather Application Guidelines.
- Cold mixing water and low temperature will retard set. Hot water and high temperature will accelerate set.
- Protect application from precipitation and high wind for at least 8 hours.
- Do not add more water than specified.
- Avoid overworking material during placement.
- Expansion joints are required. Refer to Exterior Wall System specifications.
Health and Safety
- Product is alkaline.
- Do not ingest.
- Avoid breathing dust.
- Avoid contact with skin and eyes.
- Refer to Safety Data Sheet (SDS) for additional information.
First Aid
- In case of skin contact, wash thoroughly with soap and water.
- For eye contact, flush immediately with a high volume of water for at least 15 minutes and contact a medical professional.
- For respiratory problems, remove person to fresh air.
Disposal
- Dispose of material in accordance with local, state and federal regulations.
- Technical Data
- Data Bulletin
- CSI Spec
- Curing
- Float
- Pump & Spray
- FAQs
- Safety Data Sheet
- RM Accessories
- Impact Data Bulletins
Physical state and appearance |
| Gray powder |
|
---|---|---|---|
Base |
| Portland cement |
|
pH | Wet mix | >12 |
|
Water/cement ratio | Wet mix | 0.58 |
|
Dry bulk density | ASTM C188 | 66 lbs./ft.³ |
|
|
| 7 Days 14 Days | 28 Days |
Compressive strength – psi | ASTM C109 | 1600 1900 | 2250 |
Tensile strength - psi | ASTM C307 | 280 350 | 420 |
FOR PROFESSIONAL USE ONLY
Conproco warrants this product for one year from the date of manufacture to be free from manufacturing defects and to meet the technical properties on the current technical data sheet if used as directed within shelf life. User determines suitability of product for use and assumes all risks. Buyer's sole remedy shall be limited to the purchase price or replacement of product, exclusive of labor or cost of labor. June 25, 2020.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED SHALL APPLY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CONPROCO CORP SHALL NOT BE LIABLE UPON ANY LEGAL THEORY FOR SPECIAL OR CONSEQUENTIAL DAMAGES.
Cementitous Products
Product | Minimum Temperature | Minimum to 55° F | 55°F – 70° F | 70° F and above | Minimum Time to Coat |
---|---|---|---|---|---|
ISR CM | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
ISR VO | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
ISR AG | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro Set | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Quick Shot | 40° | 8 Hours | 2 Hours | 1 Hour | 3 to 5 days depending on temperature |
Forment (remove forms) | 40° | 72 Hours | 48 Hours | 24 Hours | 3 to 5 days depending on temperature |
Gun Shot LPS | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Injection Grout (remove clay) | 40° | 24 Hours | 24 Hours | 24 Hours | 3 to 5 days depending on temperature |
One Shot 2C | 45° | 24 Hours | 12 Hours | 6 Hours | 3 to 5 days depending on temperature |
Matrix | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Matrix TR | 50° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Repoint | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Plastermix | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Structural Skin | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro One Coat | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro Stucco | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Foundation Coat | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Super Seal | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Liquid Products
Product | Minimum Temperature | Minimum to 55° F | 55°F – 70° F | 70° F and above | Minimum Time to Coat |
---|---|---|---|---|---|
Conpro Start | 40° | 18 Hours | 12 Hours | 6 Hours | Refer to temperature |
ECB | 40° | 8 Hours | 1 Hour | 30 Minutes | Dry to touch |
Primer | 40° | 8 Hours | 1 Hour | 30 Minutes | Color change to orange |
Shield MX | 40° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
M3P & M3P-X | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
M3P Overcoat | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Conpro Lastic | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Color Coat | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Super Color Stain | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Elastideck | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Terra Color | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Terracotta Finish | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Plastering Trowel | Finishing Trowel | Pool Trowel | Margin Trowel | Floats | |
---|---|---|---|---|---|
ISR CM | X | Red | |||
ISR VO | X | Red | |||
ISR AG | X | X | |||
Conpro Set | X | Red | |||
Quick Shot | X | Red | |||
Gun Shot LPS | X | X | X | ||
One Shot 2C | X | X | |||
Elastideck | X | X | |||
Plastermix | X | X | Green | ||
Matrix | X | Red | |||
Matrix TR | Red | ||||
Structural Skin | X | X | |||
One Coat | X | X | |||
Stucco | X | X | Green | ||
Foundation Coat | X | X |
For Cement Based Materials
The gallons per minute volume of a rotor/stator pump is determined by the pump size (i.e. size 6 has a larger capacity than size 3). The pressure capacity of a pump is determined by the number of stages. Thicker materials and longer distances require higher pressure.
Marshalltown | Hy-Flex | Quickspray | ChemGrout | Reed | |
---|---|---|---|---|---|
Forment® | – | X | X | X | X |
Gun Shot LPS | – | X | X | X | – |
Plastermix | X | X | X | X | – |
ISR AG | – | – | – | – | X |
Conpro One Shot 2C | – | X | X | X | – |
Elastideck | X | X | X | X | – |
Structural Skin® | – | X | X | X | – |
Conpro One Coat | – | X | X | X | – |
Conpro Stucco | X | X | X | X | – |
Foundation Coat | – | X | X | X | – |
Conpro Super Seal | X | X | X | X | – |
Manufacturer Contact Information
For Liquids and Coatings
The capacity of airless spray equipment is determined by the tip size. Given the proper tip size, the manufacturer of the equipment will be able to recommend specific equipment.
R.E. Chapin MFG | Titan Tool Inc. | Binks | Graco Inc. | |
---|---|---|---|---|
Conpro Start | X | X | – | – |
ECB | – | – | – | X |
Conpro Primer | X | X | – | – |
Conpro Shield MX | X | – | – | – |
M3P | – | – | X | – |
M3P-X | X | X | – | – |
Conpro Lastic | – | – | – | X |
Color Coat | – | – | X | – |
Super Color Stain | – | – | X | – |
Manufacturer Contact Information
One Coat is used with metal lath when the application is greater than 1/4". One Coat can be troweled or machine applied. Most carousel and rotor stator pumps are capable of spraying One Coat.
Maintaining existing concrete block, brick, stucco and concrete surfaces that are structurally sound but can be expensive to repair or repoint. A value engineered solution is to apply a monolithic stucco coating to protect from further degradation and improve physical appearance.
Projects Showcase

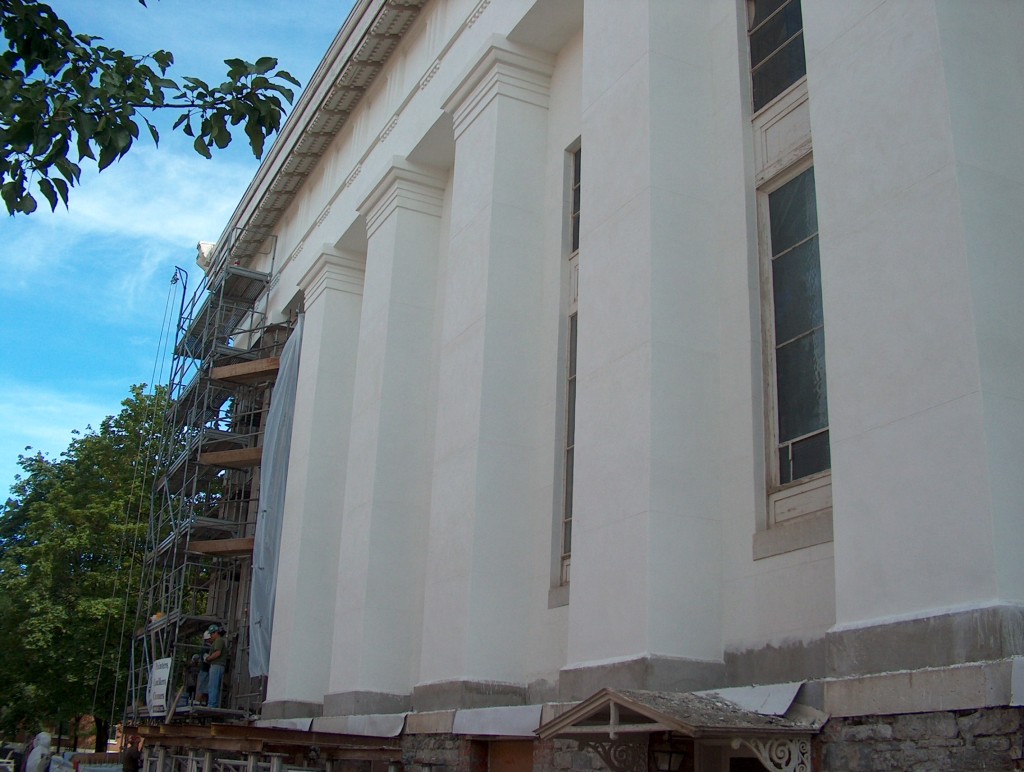

Bush Memorial Center

Project History
Bush Memorial Center is one of the finest examples of Greek Revival Architecture in the Country. It serves as an elegant, formal approach to the northern end of the historic Sage College Campus. It was originally designed by James Dakin in 1836 as the First Presbyterian Church. The firm, Architectural+, was selected to design the complete interior and exterior renovation. The existing stucco system had extensive cracking and was delaminating. Investigation of the structure determined that the entire stucco system which was applied directly to the multi-wythe brick walls, required replacement. Exterior restoration included replacing the deteriorated stucco system with a polymer-modified fiber reinforced base coat and a traditional cementitious stucco finish. The base coat varied from 1/2 – 1-1/2 inches in thickness. The contractor recreated the original profiles with the use of templates and imagination. The project received an Excellence in Historic Preservation Award from the Preservation League of New York State.
Architect
Architectural +,
Troy, NY

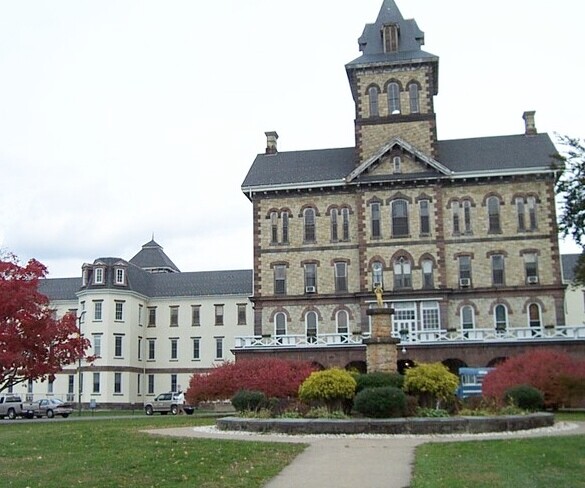

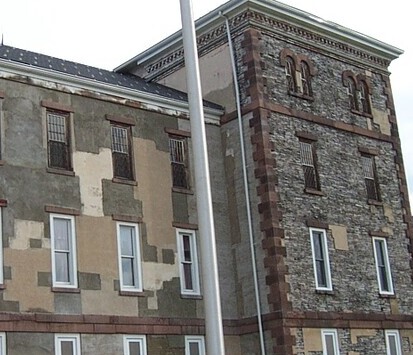

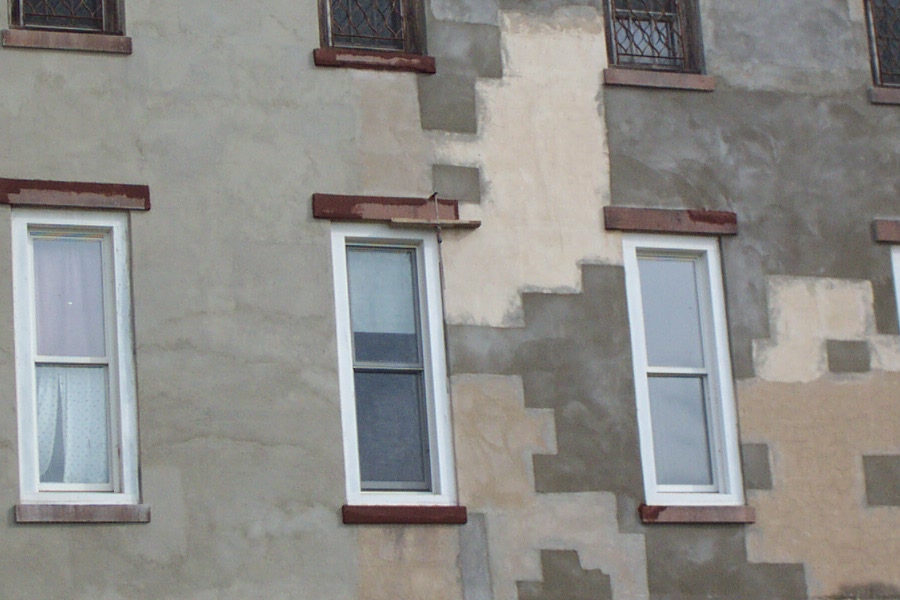

Danville State Hospital

Project History
Danville State Hospital was constructed in 1869. Dr. Thomas S. Kirkbride developed a building design for asylums which optimized light, ventilation, and each patient’s view. Danville’s main building consists of a central structure of exposed serpentine stone, with two primary wings constructed of stucco covered schist, all with brownstone accents. C & D Waterproofing stripped all areas of deteriorated and delaminated stucco back to the original substrate. Conpro One Coat was applied directly to the substrate, without the need for expanded wire mesh. Conpro One Coat may be applied in thicker lifts than traditional stucco, making it the ideal material to replace the original scratch and brown coats. A finish coat of Conpro Stucco was applied to provide a uniform finish. The stucco restoration was completed with two coats of an acrylic elastomeric paint. The brownstone accents were repaired with MIMIC, which was slightly overbuilt and then shaved to achieve the same surface texture as the original stone.
