Where to use:
Repair and reconstruct natural and cast stone, terracotta, and brick.How to apply:
Pour applied. Additional InformationMinimize InformationPerformance Characteristics
Low shrinkage- Maintains integrity of repair, resists cracking.
- Prevents delamination due to temperature change.
- Resistant to weathering action, excellent freeze/thaw stability and abrasion resistance.
- Resistant to deicing salts, chloride, and chemical attack, and environmental pollution.
- Will not cause damage to structure by restricting moisture vapor flow.
- Viscosity for molds and on-site repairs.
- Easy to batch in less than full pail quantities.
- Great matches, no wait for factory samples.
Surface Preparation
- Remove loose and deteriorated material, laitance, dirt, dust, oil and any surface contaminants that will inhibit proper bond.
- Saw cut edges with a diamond blade at a 90° angle to eliminate feather edging. Avoid polishing the edges, as this will inhibit bond.
- Avoid bruising or micro cracking during surface preparation. Refer to ICRI Surface Preparation Guide 03732.
- Repair zone must be a minimum of 1/2 inch deep, of simple geometry, with no complex edge conditions.
- Avoid long narrow repairs; these have a greater tendency to crack.
- Apply Conpro Start where a consolidant is of benefit.
- Saturate substrate with clean water, (saturated surface dry/SSD), with no standing water during Application.
- Remove concrete from corroded steel and several inches beyond to expose non-corroded steel.
- Provide a 3/4 inch clearance between the concrete and steel.
- Damaged reinforcing steel should be examined by a qualified engineer and appropriate action taken.
Priming
Embedded Metal and Steel- Remove all scaling rust from embedded metal and steel.
- Apply ECB anti-corrosion coating.
Mixing
- Measure Matrix VE powder and water to achieve a 4 to 4.5 parts powder to 1 part water ratio (or approximately 1 gallon per 50 lb unit of Matrix VE).
- Pour measured water into a clean container suitable for mixing.
- Place 1/2 of measured Matrix VE into mixing container with water and mix until uniform. Add remaining 1/2 Matrix VE to the mixing container and mix until fully blended to a uniform, lump free consistency.
- Mechanically mix at 400 – 600 rpm) is essential to change the viscosity of the material. Do not mix by hand.
- Additional water may be added to achieve desired consistency for placement of the Matrix VE. Over watering the mix will affect final color.
- For multiple batches, the additional water should be added in a uniform fashion to avoid color shift.
- Insufficient water will not hydrate the material and it will not achieve full strength. Mix only as much material as can be placed in 15 – 20 minutes.
- Do not over mix, as this will entrain air.
- Do not re-temper, this will affect color.
Application
- At the time of application, surfaces should be saturated surface dry/ damp (SSD) but hold no standing water.
- Pour material into form/mold.
- Force the material against the edges, working from right to left or left to right, or vibrate.
- Over-build repair zone by 1/4 inch.
- Shave to final form with Mitre Rod up to 2 hours (longer in cold temperature) after application.
- Do not overwork the finish.
Curing
- Ensure repair zone stays properly hydrated. This may vary depending on ambient conditions. If hydration is not maintained, the repair may flash dry and not achieve full strength. Refer to ACRI 308R-01 for detailed curing recommendations. If the repair is inaccessible, tape polyethylene over area to retain moisture. Do not allow polyethylene to contact the material.
- Protect repair from direct sunlight, wind, rain and frost during curing period.
Clean Up
- Clean tools and equipment with water immediately after use. Cured material must be removed mechanically.
Theoretical Yield
Yield per Pail |
Repair Depth |
Square Feet |
---|---|---|
0.5 cubic feet |
1/2 Inch |
12.00 |
0.5 cubic feet |
1 Inch |
6.00 |
0.5 cubic feet |
1.5 Inches |
4.50 |
0.5 cubic feet |
2 Inches |
3.00 |
Product Handling

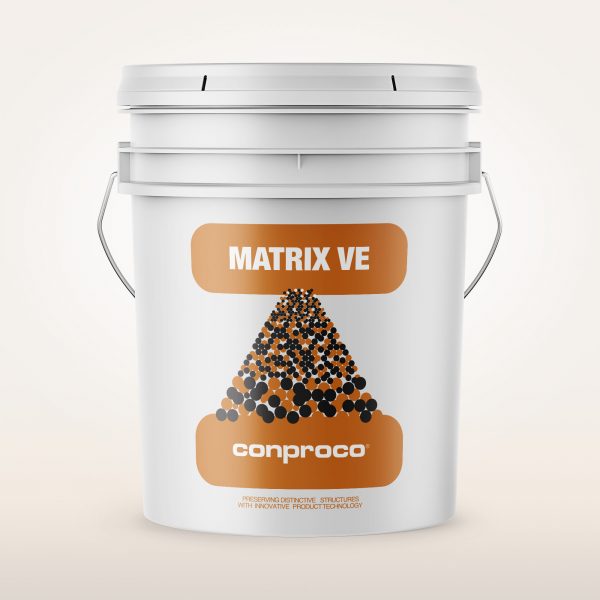

Packaging- 5 gallon plastic pails – 50 lbs.
- 18 months when properly stored.
- Transport and store in cool, clean, dry conditions in unopened containers.
- High temperature or high humidity will reduce shelf life.
Limitations
- Do not apply unless substrate and ambient temperature can be maintained at a minimum of 40°F for 24 hours. Refer to ACI Cold Weather Application Guidelines.
- Cold mixing water and low temperature will retard set. Hot water and high temperature will accelerate set.
- Protect application from precipitation and high wind for at least 24 hours.
- Do not add more water than specified.
- Do not re-temper, as this will affect color.
- Avoid overworking material during placement as this will affect color and cause surface (map) cracking.
- Do not allow polyethylene or burlene to touch surface while curing as this will cause whitening of the material.
Health and Safety
- Product is alkaline.
- Do not ingest.
- Avoid breathing dust.
- Avoid contact with skin and eyes.
- Refer to Safety Data Sheet (SDS) for additional information.
First Aid
- In case of skin contact, wash thoroughly with soap and water.
- For eye contact, flush immediately with a high volume of water for at least 15 minutes and contact a medical professional.
- For respiratory problems, remove person to fresh air.
Disposal
- Dispose of material in accordance with local, state or federal regulations.
- Technical Data
- Data Bulletin
- CSI Spec
- Competition
- Curing
- Float
- FAQs
- Safety Data Sheet
- Color Card
Physical state and appearance | Â | Dry, pigmented powder | ||
---|---|---|---|---|
Base | Â | Portland cement | ||
pH | Wet mix | >12 | ||
Water/dry material ratio | Â | 0.20 | ||
Dry bulk density | ASTM C188 | 92 lbs./ft.³ | ||
Density | Hardened | 118 lbs./ft.³ | ||
Setting time by vicat needle | ASTM C191 | 240 minutes | ||
Percent air – pressure method | ASTM C231 | 4% | ||
Water absorption | ASTM C140 | 11% | ||
Water vapor transmission | ASTM E96 | 5.2 perms | ||
Length change | ASTM C157 | <500 µstrains @ 28 days | ||
Modulus of elasticity | ASTM C469 | 2.6 x 106 | ||
Slant shear bond strength – epoxy | ASTM C882 | 1800 psi | ||
 |  | 7 Days | 14 Days | 28 Days |
Compressive strength – psi | ASTM C109 | 2900 |  | 3000 |
Tensile strength – psi | ASTM C307 | 400 | 480 | 560 |
FOR PROFESSIONAL USE ONLY
Conproco Corp. warrants this product for one year from date of installation to be free from manufacturing defects and to meet the technical properties on the current technical data sheet if used as directed within shelf life. User determines suitability of product for use and assumes all risks.
Buyer’s sole remedy shall be limited to the purchase price or replacement of product exclusive of labor or cost of labor. May 11, 2017
NO OTHER WARRANTIES EXPRESS OR IMPLIED SHALL APPLY INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CONPROCO CORP. SHALL NOT BE LIABLE UNDER ANY LEGAL THEORY FOR SPECIAL OR CONSEQUENTIAL DAMAGES.
Conproco | Cathedral Stone | Edison Coatings | US Heritage | Keim |
---|---|---|---|---|
Matrix | Jahn M70 | Custom System-45 | HL-60 or HS-60 | Restauro Giess or Fuge |
Matrix VE | none | none | none | none |
Matrix Superfine | Jahn M100 & M120 | none | TB-15 | none |
Matrix TR | none | Thin-Fill 55 | none | Restauro-Top |
ISR CM | Jahn M90 | none | none | none |
Repoint | Jahn M110 | Lime Mortar | HRM Type – N only or Lime Mortar or Putty | none |
Repoint VE | none | none | none | none |
Injection Grout | Jahn M30/40 | Pump X-53 | IG-10 | Concretal Fine Filler |
Terra Color | CSP Mineral Silicate | Aquathane-UA210 | none | Soldalit |
Terracotta Finish | CSP Terra Cotta Glaze | none | none | none |
M3P | Minersal Silicate Coating | none | none | Keim Granital |
M3P-X | Fixative | none | none | Fixative |
M3P Overcoat | none | none | none | Soldalit TDS |
Cementitous Products
Product | Minimum Temperature | Minimum to 55° F | 55°F – 70° F | 70° F and above | Minimum Time to Coat |
---|---|---|---|---|---|
ISR CM | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
ISR VO | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
ISR AG | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro Set | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Quick Shot | 40° | 8 Hours | 2 Hours | 1 Hour | 3 to 5 days depending on temperature |
Forment (remove forms) | 40° | 72 Hours | 48 Hours | 24 Hours | 3 to 5 days depending on temperature |
Gun Shot LPS | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Injection Grout (remove clay) | 40° | 24 Hours | 24 Hours | 24 Hours | 3 to 5 days depending on temperature |
One Shot 2C | 45° | 24 Hours | 12 Hours | 6 Hours | 3 to 5 days depending on temperature |
Matrix | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Matrix TR | 50° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Repoint | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Plastermix | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Structural Skin | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro One Coat | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro Stucco | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Foundation Coat | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Super Seal | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Liquid Products
Product | Minimum Temperature | Minimum to 55° F | 55°F – 70° F | 70° F and above | Minimum Time to Coat |
---|---|---|---|---|---|
Conpro Start | 40° | 18 Hours | 12 Hours | 6 Hours | Refer to temperature |
ECB | 40° | 8 Hours | 1 Hour | 30 Minutes | Dry to touch |
Primer | 40° | 8 Hours | 1 Hour | 30 Minutes | Color change to orange |
Shield MX | 40° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
M3P & M3P-X | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
M3P Overcoat | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Conpro Lastic | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Color Coat | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Super Color Stain | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Elastideck | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Terra Color | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Terracotta Finish | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
 | Plastering Trowel | Finishing Trowel | Pool Trowel | Margin Trowel | Floats |
---|---|---|---|---|---|
ISR CM | Â | Â | Â | X | Red |
ISR VOÂ | Â | Â | Â | X | Red |
ISR AG | Â | X | X | Â | Â |
Conpro Set | Â | Â | Â | X | Red |
Quick Shot | Â | Â | Â | X | Red |
Gun Shot LPS | X | Â | X | X | Â |
One Shot 2C | Â | X | X | Â | Â |
Elastideck | Â | X | X | Â | Â |
Plastermix | X |  | X |  | Green |
Matrix | Â | Â | Â | X | Red |
Matrix TR | Â | Â | Â | Â | Red |
Structural Skin | X |  | X |  |  |
One Coat | X | Â | X | Â | Â |
Stucco | X | Â | X | Â | Green |
Foundation Coat | X | Â | X | Â | Â |
Stone repair mortars have lower compressive strengths compared to concrete mortars. It is important that the repair mortar have similar physical properties to the stone being repaired.  Matrix is engineered to closely match the physical properties as well as the color and surface texture of these materials.   Â
The most obvious difference is our color program. We have two facilities that perform color matching. Our staff has over 100 years of combined experience matching stone. We have Matrix tool kits which allow the trained applicator to perform color matching at the job site. We have the KIOSK Program which enables authorized dealers throughout the US to do color matching as well produce finished product in their stores.      Â
Yes. Matrix VE (Viscosity Enhanced) has the same physical properties as regular Matrix but it is formulated to be fluid enough to be cast into molds.
