Matrix TR

Matrix TR is formulated to provide long-term protection of natural stone and concrete when full-depth repairs are unnecessary or not practical.

Where to use:

Thin, protective repairs to brownstone, sandstone, limestone, cast stone, terracotta, and concrete.

How to apply:

Brush or trowel applied. Additional Information

Performance Characteristics

  • Low shrinkage Maintains integrity of repair, resists cracking.
  • Thermal compatibility Prevents delamination due to temperature change.
  • Durable Resistant to weathering action, excellent freeze/thaw stability and abrasion resistance.
  • Very low permeability Resistant to deicing salts, carbonation, chloride, and chemical attack.
  • Breathability Will not cause damage to structure by restricting moisture vapor flow.
  • Complete kit Pre-measured, two component system in one container.
  • Extensive color spectrum Available in 11 standard colors and custom color matching.

Surface Preparation

  • Remove loose and deteriorated material, laitance, dirt, dust, oil and any surface contaminants that will inhibit proper bond.
  • Apply Conpro Start where a consolidant is of benefit.
  • Pre-treat static cracks and voids with Injection Grout where applicable.
  • Saturate substrate with clean water, (saturated surface dry/SSD).
  • Mechanically prepare surface to be open-pored and textured (CSP 3). Refer to ICRI Surface Preparation Guide 03732 for information about surface preparation.

Priming

  • No priming is required under normal circumstances.

Mixing

  • Mechanically mix using a low speed drill (400-600 rpm) and mixing paddle.
  • Thoroughly shake K-88 Admix to disperse the pigment.
  • Mix 3 parts powder to 1 part K-88 Admix.
  • Mix continuously for 3 minutes to a uniform, lump-free consistency.
  • Allow to “breathe” for 1 minute and remix for 1 minute. This will improve workability and open time.
  • Do not overmix, as this will entrain excess air.
  • Do not re-temper.

Application

  • At the time of application, surfaces should be saturated surface dry (SSD) but hold no standing water.
  • Apply material with a stiff bristle brush or trowel.
  • Work material into substrate to promote proper adhesion.
  • Coat individual stones (not continuous over mortar joints) a maximum thickness of 1/16 inch.
  • Finish with either a sponge float or trowel.
  • Do not overwork the finish.

Curing

  • Protect repair from direct sunlight, wind, rain condensation and frost during curing period.

Clean Up

  • Clean tools and equipment with water immediately after use.
  • Cured material must be removed mechanically.

Coverage/Yield

  • 10 lb. kit – 20 ft² @ 1/16 inch.

Product Handling

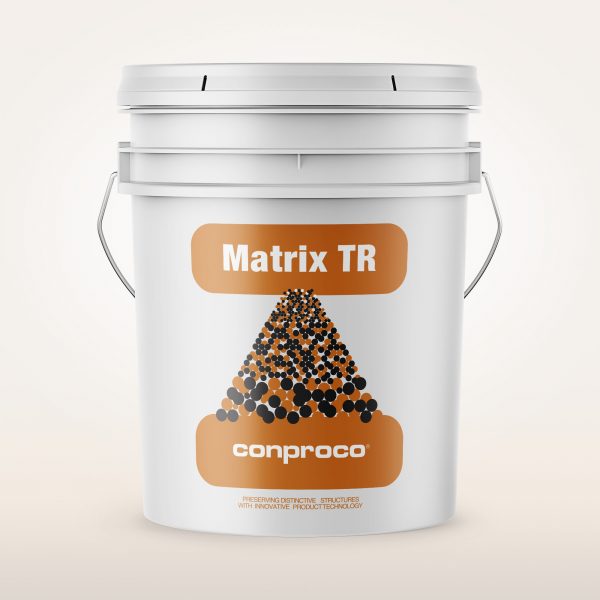

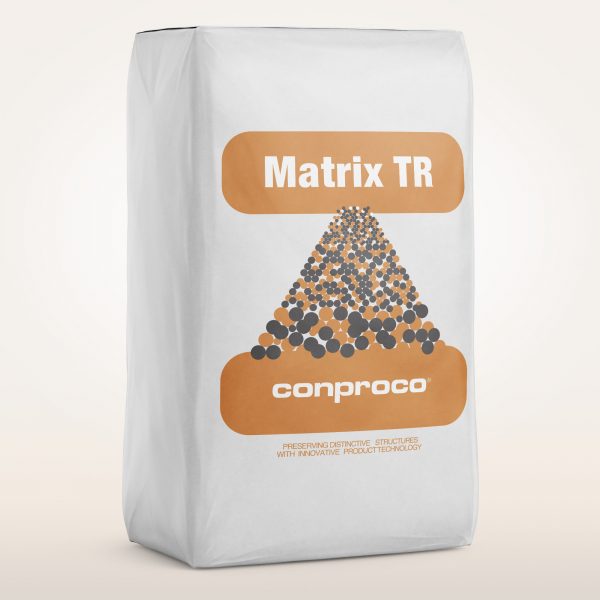

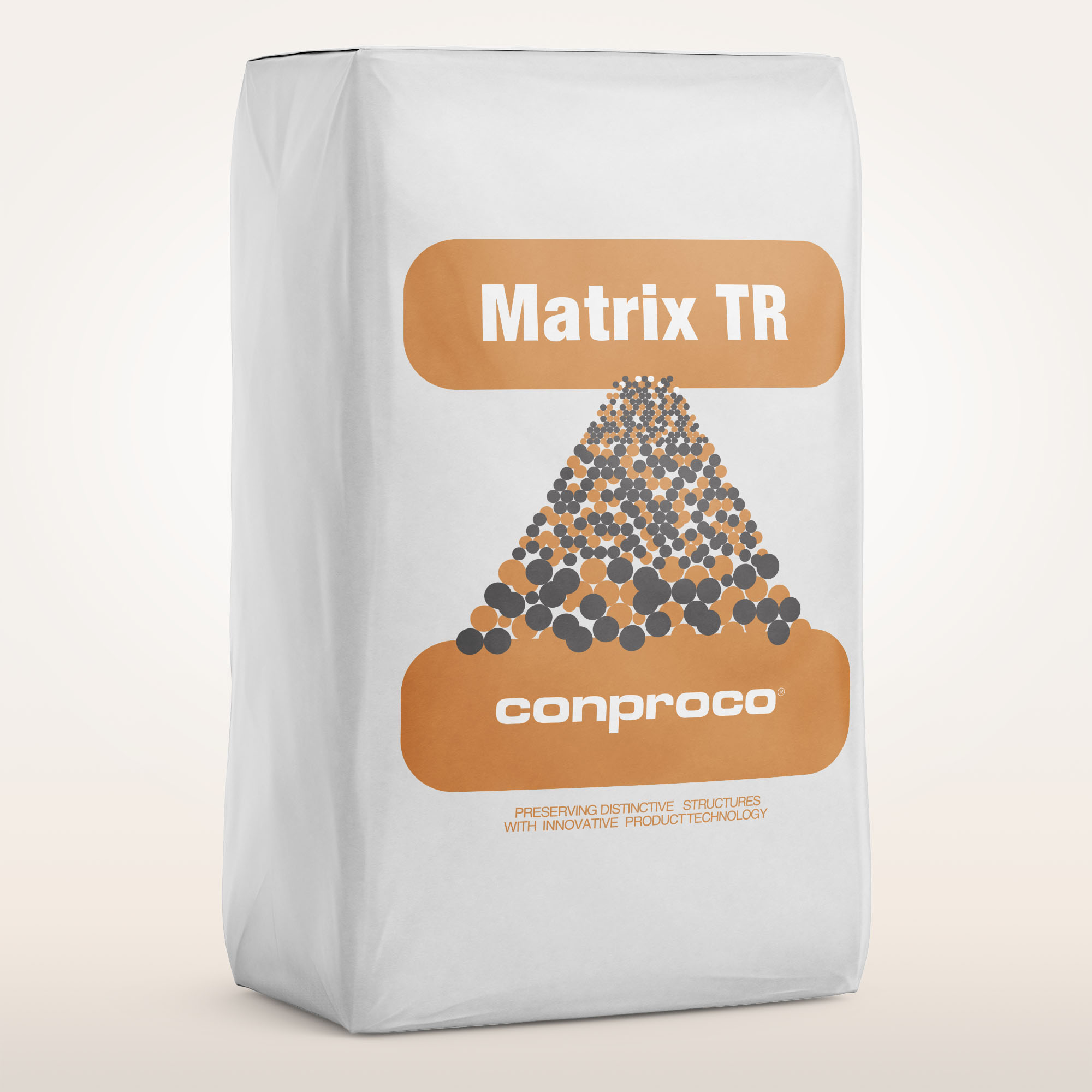

  • Packaging 10 lb. kit contains 8.36 lbs. of powder and 2.1 lbs. of K-88 Admix in plastic pails.
  • Shelf Life 18 months when properly stored.
  • Storage Transport and store in cool, clean, dry conditions in unopened containers. High temperature or high humidity will reduce shelf life. Protect K-88 Admix from freezing.

Limitations

  • Do not apply unless substrate and ambient temperature can be maintained at a minimum of 50°F for 24 hours. Refer to ACI Cold Weather Application Guidelines.
  • Protect application from precipitation condensation and high wind for at least 24 hours.
  • Do not re-temper, polymer modified materials.
  • Avoid overworking material during placement.
  • Do not apply curing compounds.
  • Do not allow polyethylene or burlene to touch surface while curing as this will cause whitening of the material.

Health and Safety

  • Product is alkaline.
  • Do not ingest.
  • Avoid breathing dust.
  • Avoid contact with skin and eyes.
  • Refer to Safety Data Sheet (SDS) for additional information.

First Aid

  • In case of skin contact, wash thoroughly with soap and water.
  • For eye contact, flush immediately with a high volume of water for at least 15 minutes and contact a medical professional.
  • For respiratory problems, remove person to fresh air.

Disposal

  • Dispose of material in accordance with local, state and federal regulations.
  • Technical Data
  • Data Bulletin
  • CSI Spec
  • Competition
  • Curing
  • Float
  • FAQs
  • Safety Data Sheet
  • Color Card

Physical state and appearance



Dry pigmented powder and liquid

Base

    Powder





Portland cement

    Liquid admix



Acrylic polymer

pH

Wet mix

>12

Liquid/dry material ratio



0.33

Dry bulk density

ASTM C188

93 lbs./ft.³

Density

Hardened

118 lbs./ft.³

Setting time @ 1/8 inch thickness

ASTM C953

Initial 15 minutes – Final 30 minutes

Durometer hardness

ASTM D2240

70

Water vapor transmission

ASTM E96

5.1 perms

Accelerated weathering

ASTM G154

2000 hours – excellent – no effect



7 days        14 Days       28 days

Compressive strength - psi

ASTM C109

4000              5100               6200

Tensile strength – psi

ASTM C307

200                250                 350

FOR PROFESSIONAL USE ONLY

Conproco warrants this product for one year from the date of manufacture to be free from manufacturing defects and to meet the technical properties on the current technical data sheet if used as directed within shelf life. User determines suitability of product for use and assumes all risks. Buyer's sole remedy shall be limited to the purchase price or replacement of product, exclusive of labor or cost of labor. January 2, 2019.

NO OTHER WARRANTIES EXPRESSED OR IMPLIED SHALL APPLY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CONPROCO CORP SHALL NOT BE LIABLE UPON ANY LEGAL THEORY FOR SPECIAL OR CONSEQUENTIAL DAMAGES.

Conproco
Cathedral Stone
Edison Coatings
US Heritage
Keim
Matrix
Jahn M70
Custom System-45
HL-60 or HS-60
Restauro Giess or Fuge
Matrix VE
none
none
none
none
Matrix Superfine
Jahn M100 & M120
none
TB-15
none
Matrix TR
none
Thin-Fill 55
none
Restauro-Top
ISR CM
Jahn M90
none
none
none
Repoint
Jahn M110
Lime Mortar
HRM Type – N only or Lime Mortar or Putty
none
Repoint VE
none
none
none
none
Injection Grout
Jahn M30/40
Pump X-53
IG-10
Concretal Fine Filler
Terra Color
CSP Mineral Silicate
Aquathane-UA210
none
Soldalit
Terracotta Finish
CSP Terra Cotta Glaze
none
none
none
M3P
Minersal Silicate Coating
none
none
Keim Granital
M3P-X
Fixative
none
none
Fixative
M3P Overcoat
none
none
none
Soldalit TDS

Cementitous Products

Product
Minimum Temperature
Minimum to 55° F
55°F – 70° F
70° F and above
Minimum Time to Coat
ISR CM
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
ISR VO
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
ISR AG
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro Set
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Quick Shot
40°
8 Hours
2 Hours
1 Hour
3 to 5 days depending on temperature
Forment (remove forms)
40°
72 Hours
48 Hours
24 Hours
3 to 5 days depending on temperature
Gun Shot LPS
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Injection Grout (remove clay)
40°
24 Hours
24 Hours
24 Hours
3 to 5 days depending on temperature
One Shot 2C
45°
24 Hours
12 Hours
6 Hours
3 to 5 days depending on temperature
Matrix
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Matrix TR
50°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Repoint
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Plastermix
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Structural Skin
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro One Coat
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro Stucco
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Foundation Coat
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Super Seal
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature

Liquid Products

Product
Minimum Temperature
Minimum to 55° F
55°F – 70° F
70° F and above
Minimum Time to Coat
Conpro Start
40°
18 Hours
12 Hours
6 Hours
Refer to temperature
ECB
40°
8 Hours
1 Hour
30 Minutes
Dry to touch
Primer
40°
8 Hours
1 Hour
30 Minutes
Color change to orange
Shield MX
40°
24 Hours
18 Hours
12 Hours
Dry to touch
M3P & M3P-X
45°
24 Hours
18 Hours
12 Hours
Dry to touch
M3P Overcoat
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Conpro Lastic
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Color Coat
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Super Color Stain
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Elastideck
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Terra Color
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Terracotta Finish
45°
24 Hours
18 Hours
12 Hours
Dry to touch


Plastering Trowel
Finishing Trowel
Pool Trowel
Margin Trowel
Floats
ISR CM



X
Red
ISR VO



X
Red
ISR AG

X
X


Conpro Set



X
Red
Quick Shot



X
Red
Gun Shot LPS
X

X
X

One Shot 2C

X
X


Elastideck

X
X


Plastermix
X

X

Green
Matrix



X
Red
Matrix TR




Red
Structural Skin
X

X


One Coat
X

X


Stucco
X

X

Green
Foundation Coat
X

X

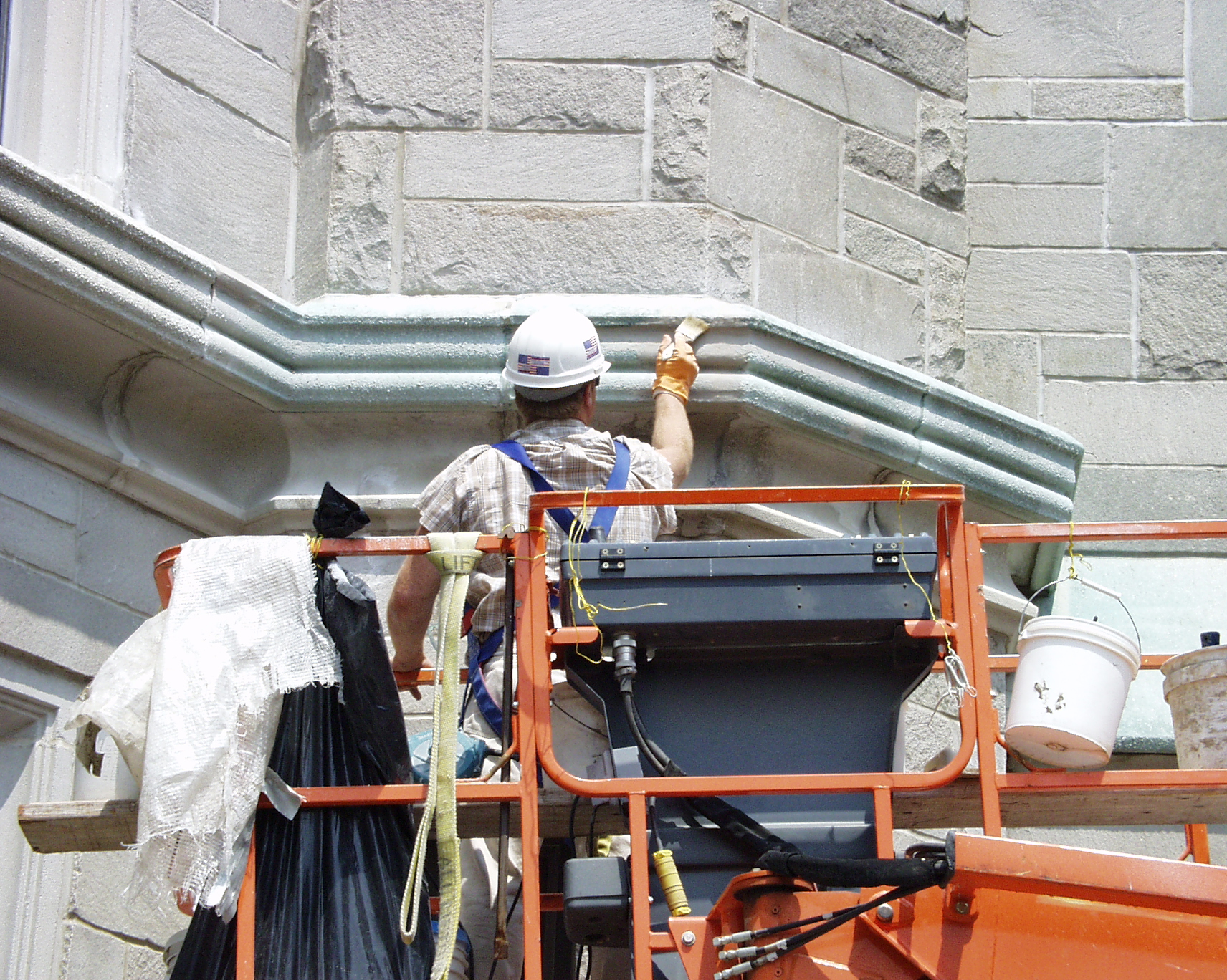

Sills, lintels, terracotta and scaling are examples of areas that can require repair, but full depth repairs are not practical. With Matrix TR the repair process is limited to application of a coating engineered to be compatible with masonry surfaces.

Matrix TR is a two-component cementitious coating that can be applied to damaged surfaces.  This durable protective layer prevents further deterioration from water and environmental contaminants. Matrix TR is available in 11 standard colors.

Add Color K-88 to the Matrix TR powder. Mix with mechanical mixer @ 400 - 600 rpm for 3 minutes. Apply with stiff bristle brush or trowel up to 1/16".  Finish with either sponge float of trowel.  Do not over work finish.

Projects Showcase

Birmingham City Hall

Project History

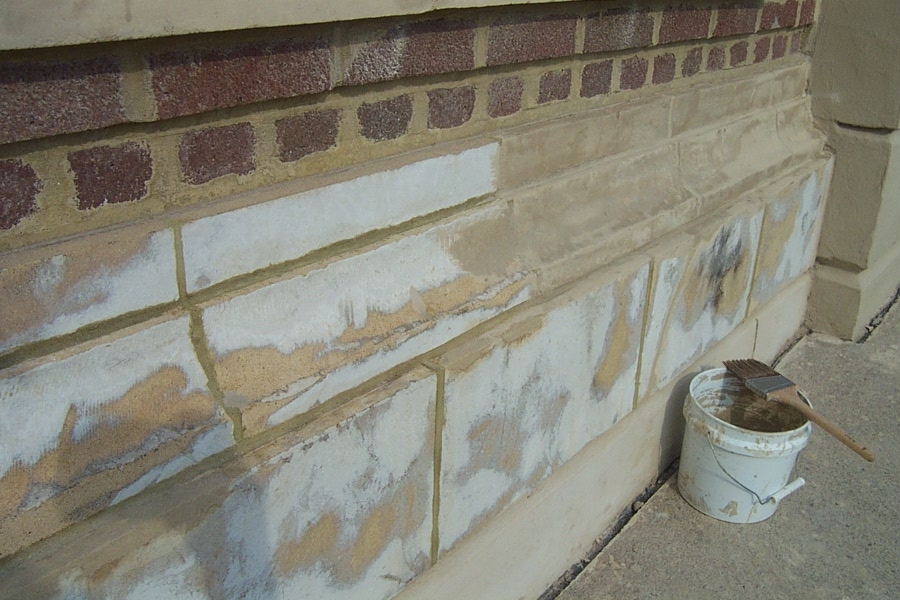

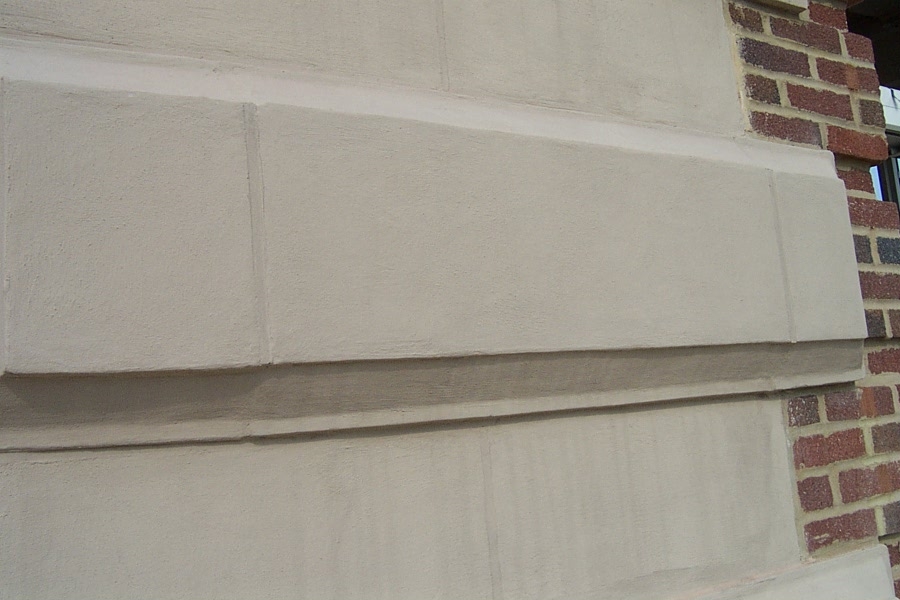

Birmingham City Hall was designed by noted Michigan architect Marcus Robinson Burrowes. Deicing salts caused the deterioration of existing limestone at the foundation, the marred perimeter stones were at eye-level height and obvious to pedestrians. Some stones required substantial restoration and others only minor surface treatment. Furthermore, the limestone had a bush hammer texture that needed to be recreated. Matrix, a trowel applied cement-based repair mortar that is also resistant to deicing salts, was selected as the material for the deeper patchwork. The contractor color matched Matrix to the original limestone. Deteriorated sections were cut out, removed, and repaired with the customized Matrix. MIMIC TR, a brush applied cementitious repair mortar designed for thin repairs, was used where the removal of stone was not necessary. Both Matrix and MIMIC TR were ingeniously textured with a hair pick to replicate the sought-after bush hammer effect and blended the old with the new.

Products

Contractor
Boss Construction
Co., Inc.,
Ecorse, MI

Distributor
Barnes & Sweeney
Enterprises Inc.,
Walled Lake, MI



146 W 82nd Street

Project History

This building, originally built in 1927, was primarily constructed of brick and brownstone. All loose brownstone was removed and the remaining sections were treated with a consolidant. Matrix was used to recreate the detailed, ornamental floral pattern. In order to keep the color consistent between new and existing building materials, Matrix TR was used.

Contractor
Brend Renovation
Corporation,
Brooklyn, NY
