Lastic

Crack-bridging, breathable, waterproof coating for concrete and masonry. Durable, colorfast coating for concrete, masonry, and stucco.

Where to use:

Protect vertical concrete, block, brick, stucco, and EIFS from water and contaminant entry. Will bridge minor cracking.

How to apply:

Roller, spray or brush applied, waterproof, elastomeric, crack bridging, anti-carbonation membrane. Additional Information

Performance Characteristics

  • Flexible Retains elasticity at low temperatures.
  • Waterproof Two 15 mils. wet coats provide waterproof membrane.
  • Anti-carbonation Mitigates carbonation of concrete.
  • Breathability Water vapor permeable.
  • Alkaline stable Formulated for highly alkaline substrates.
  • Durable UV stable. Mildew resistant.
  • Colorfast Premium quality exterior grade pigments, minimize fading.
  • Textures Available in sanded and smooth finishes.
  • Extensive color spectrum 38 standard colors and custom matching.

Surface Preparation

  • Remove loose and deteriorated material, laitance, dirt, dust, oil and any surface contaminants that will inhibit proper adhesion.
  • Prepare surface to a sandpaper-like texture (CSP 3) by mechanical abrasion or medium water blasting. Refer to ICRI Surface Preparation Guide 03732 for information about Concrete Surface Profile (CSP).
  • Surface must be dry and frost free.
  • Small voids, air pockets, static cracks up to 1/16 inch and irregularities should be filled with Plastermix.
  • Repair larger voids and damaged areas with Conpro Set.
  • For cracks greater than 1/16 inch, rout and caulk with a urethane sealant. Refer to SWRI Sealants – The Professionals’ Guide.
  • Apply Plastermix to concrete where a monolithic, void free texture is desired.
  • Apply Plastermix on reinforced concrete to increase carbonation resistance.

Priming

  • Priming is not necessary under normal circumstances.

Mixing

  • Stir or mechanically mix using a low speed drill (400 – 600) until homogenous.
  • Mix pails from different batches when an entire surface is visible.

Application

  • Apply a test sample to determine adhesion. Test using ASTM D3359 cross-hatch adhesion procedure.
  • Substrate temperature must be above 45°F.
  • Ambient temperature must be above 45°F for the entire curing period.
  • Roll, spray or brush apply a uniform 15 mils. wet – dries to 7 mils.
  • For roller applications use a 1 – 1-1/4 inch synthetic nap roller depending on texture of substrate.
  • For spray applications use a Graco 3500, President or Bulldog or equivalent with a 0.041 – 0.047 tip. Refer to Conproco Black Book.
  • Spray application must be back rolled for a pin-hole free surface.
  • Work to pre-determined break points in the structure.
  • Maintain a wet edge.
  • Apply a second coat when the first is dry-to-touch.

Curing

  • Protect from moisture for 24 hours and wind driven rain for 72 hours.

Clean Up

  • Clean tools and equipment with water. Clean adjacent areas with water before material dries.

Coverage/Yield

  • 100 ft²/gal. @ 15 mils. wet for smooth surfaces.
  • 50 – 75 ft²/gal. @ 15 mils. wet for split block or rough surfaces.

Product Handling

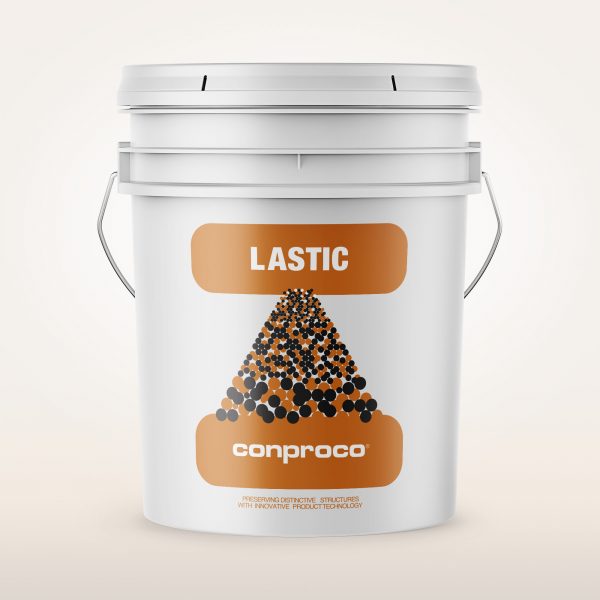

  • Packaging 5 gallon containers
  • Shelf Life 18 months in unopened containers.
  • Storage Protect from freezing. Transport and store in cool, clean, dry conditions in unopened containers. High temperature will reduce shelf life.

Limitations

  • Do not apply if precipitation is forecast within 24 hours of application.
  • Do not apply in strong winds.
  • Do not apply to horizontal or overhead surfaces.
  • Do not apply to frozen surfaces.
  • Do not apply if temperature of substrate is below 45°F.
  • Do not apply if ambient temperature is below 45°F.
  • Do not apply in areas susceptible to ponding water.

Health and Safety

  • Product is alkaline.
  • Do not ingest.
  • Avoid contact with skin and eyes.
  • Avoid breathing vapors.
  • Refer to Safety Data Sheet (SDS) for additional information.

First Aid

  • In case of skin contact, wash thoroughly with soap and water.
  • For eye contact, flush immediately with a high volume of water for at least 15 minutes and contact a medical professional.
  • For respiratory problems, remove person to fresh air.
  • If respiratory difficulty persists, contact a medical professional.

Disposal

  • Dispose of material in accordance with local, state and federal regulations.

Grade



Smooth

Sanded (Textured)

Physical state and appearance



Liquid – tinted – thick paint

Liquid – tinted – thick paint

Base



Aqueous

Aqueous

Polymer



100% acrylic

100% acrylic

pH



9.5 – 10.5

9.5 – 10.5

Percent solids by weight



54%

62%

Percent solids by volume

ASTM D2697

46%

Viscosity

ASTM D562

<142 KU

<142 KU

Flame spread

ASTM E84

Zero

Zero

Density of liquid coatings

ASTM D1475

10.6 lbs./gal.

11.2 lbs./gal.

Tear resistance

ASTM D6083

80 lbs./inch.

28 lbs./inch.

Moisture vapor transmission

Method B wet cup

ASTM D1653

16.2 perms @ 15 mils. DFT

39 perms @ 15 mils. DFT

Accelerated weathering – QUV

ASTM G154

2000 hours –

UV-B cycled with condensation – no effect

Same data as for smooth

Resistance to chemicals

ASTM D1308

Excellent

Excellent

Water penetration and leakage

ASTM E514

100% reduction

100% reduction

Wind driven rain

Fed. Spec TT-C-555B

Pass

Pass

Wind driven rain

ASTM D6904

Pass

Dirt pick-up

ASTM D3719

Excellent

Excellent

Low temperature flexibility

ASTM D522

Pass

Pass

Low temperature flexibility after 1000 hrs.

ASTM D522

Pass

Pass

Tensile

ASTM D412

270 psi

Elongation

ASTM D412

485%

Crack Bridging

ASTM C1305

No Cracking

FOR PROFESSIONAL USE ONLY
Conproco warrants this product for one year from the date of manufacture to be free from manufacturing defects and to meet the technical properties on the current technical data sheet if used as directed within shelf life. User determines suitability of product for use and assumes all risks. Buyer’s sole remedy shall be limited to the purchase price or replacement of product, exclusive of labor or cost of labor. January 8, 2016.

NO OTHER WARRANTIES EXPRESSED OR IMPLIED SHALL APPLY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CONPROCO CORP SHALL NOT BE LIABLE UPON ANY LEGAL THEORY FOR SPECIAL OR CONSEQUENTIAL DAMAGES.

Vertical

Conproco
Sika
BASF
Sto
Tamms
Keim
Sikagard 670W
Sika Color
Parkcoat
Super Colorcoat
Sealcoat
Thorocoat 200
Thorosheen
Thoro 35
Concrete Coating
232 and 230
Maxicryl 201
Tammosheen
Tammscoat
None
Elastocolor 550W
Thorolastic
Thorogard
Colorflex
Flexcoat
Stolastic 211
Stolastic 212
Tammolastic
None
None
None
None
None
Soldalit TDS
None
None
None
None
Soldalit TDS
None
None
None
None
Soldali-Dilution
Skiaguard 740W
Master Protect H107
None
Baracade 40/100
None
None
None
None
Aquastain T-96
None

Horizontal

Conproco
Sika
BASF
Sto
Tamms
Keim
None
None
Texture Coat 510
None
None
None
None
None
Aquastain T-96
None

Protection Coatings

Product
Minimum Temperature
Minimum to 55° F
55°F – 70° F
70° F and above
Minimum Time to Coat
Plastermix
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature

Liquid Products

Product
Minimum Temperature
Minimum to 55° F
55°F – 70° F
70° F and above
Minimum Time to Coat
Shield MX
40°
24 Hours
18 Hours
12 Hours
Dry to touch
M3P & M3P-X
45°
24 Hours
18 Hours
12 Hours
Dry to touch
M3P Overcoat
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Conpro Lastic
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Color Coat
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Super Color Stain
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Elastideck
45°
24 Hours
18 Hours
12 Hours
Dry to touch

For Cement Based Materials

The gallons per minute volume of a rotor/stator pump is determined by the pump size (i.e. size 6 has a larger capacity than size 3). The pressure capacity of a pump is determined by the number of stages. Thicker materials and longer distances require higher pressure.


Marshalltown
Hy-Flex
Quickspray
ChemGrout
Reed
Forment®
X
X
X
X
Gun Shot LPS
X
X
X
Plastermix
X
X
X
X
ISR AG
X
Conpro One Shot 2C
X
X
X
Elastideck
X
X
X
X
Structural Skin®
X
X
X
Conpro One Coat
X
X
X
Conpro Stucco
X
X
X
X
Foundation Coat
X
X
X
Conpro Super Seal
X
X
X
X

Manufacturer Contact Information

Marshalltown – Hopper Guns

phone: 800-888-0127

www.marshalltown.com

Hy-Flex – Rotar/Stator

phone: 866-849-6246

www.hyflexcorp.com

Quikspray – Peristaltic

phone: 419-732-2611

www.quikspray.com



ChemGrout – Rotor/Stator & Piston

phone: 708-354-7112

www.chemgrout.com

Reed – Gunite/Shotcrete

phone: 888-779-7333

wwww.reedmfg.com

For Liquids and Coatings

The capacity of airless spray equipment is determined by the tip size. Given the proper tip size, the manufacturer of the equipment will be able to recommend specific equipment.


R.E. Chapin MFG
Titan Tool Inc.
Binks
Graco Inc.
Conpro Start
X
X
ECB
X
Conpro Primer
X
X
Conpro Shield MX
X
M3P
X
M3P-X
X
X
Conpro Lastic
X
Color Coat
X
Super Color Stain
X

Manufacturer Contact Information

R.E. Chapin MFG – Low Pressure spray

phone: 888-950-4458

www.chapinmfg.com

Titan Tool Inc. – Airless sprayers

phone: 800-526-5362

www.titantool.com

Graco Inc. – Airless sprayers

phone: 612-623-6000

www.graco.com

What is an elastomeric coating?

An elastomeric coating uses acrylic chemistry modified to be flexible.  This flexibility allows the coating to stretch, bridging hairline cracks that are common in concrete and masonry surfaces.  Elastomeric coatings are typically applied at a higher mil thickness than most paints.

When is an elastomeric coating preferable?

Concrete, stucco, concrete masonry units and other masonry substrates are ridged by design.  Hairline cracks develop because of freeze/thaw cycles, movement caused by settling, and physical impact.   Once a crack develops water and environmental contaminants have a pathway which can lead to costly repairs.  The combination of a waterproof membrane with crack bridging capabilities is well suited to rigid structures.

Is custom color matching available?

Lastic is available in 38 standard and unlimited custom colors.  Lastic is available in smooth and sanded finishes to accent architectural details.

How to use this chart

Choose the 3 or 4 most important characteristics from the Performance Criteria. Determine which product is best suited to the specific application by adding the value numbers for each product and comparing the totals.

5 = Best Available; 4 = Excellent; 3 = Above average; 2 = satisfactory; 1 = Not a characteristic of the product.

PERFORMANCE CRITERIA – VERTICAL APPLICATIONS


M3P
M3P Overcoat
Conpro Lastic
Color Coat
SuperColor Stain
Terra Color
Breathable/Vapor transmission
5
5
3
3
4
3
Flexible
1
1
5
2
2
2
Weather and Water Protection
4
4
5
3
3
3
Long-Term Durability
5
4
4
3
3
3
Carbonation Mitigation
5
5
5
3
2
3
Fade Resistance
5
5
4
4
4
4
Crack Bridging
1
1
5
1
1
1
Dirt Pick-up
5
5
3
4
5
4
Stain Resistance
5
5
3
4
5
4
Abrasion Resistance
2
2
4
4
4
4
Fugus and Mildew Resistance
5
5
4
4
4
4
Maintenance Requirement
5
5
4
3
4
3
Opacity / Hiding Power
2
4
5
4
3
4

M3P: An inorganic mineral silicate based paint that provides long-term protection and water repellency without changing the natural appearance of the substrate.
Best Suited: Protection from water and carbonation for structures that are difficult to maintain or impractical to recoat in the future. Provides a natural “not painted” appearance. Use when the object is to blend the color of the substrate to be more uniform

M3P Overcoat: Highly breathable hybrid mineral silicate/acrylic coating for application over painted or unpainted surfaces providing a natural non-gloss finish.
Best Suited: Previously painted substrates, particularly silicone and elastomeric coatings which after multiple application reduce vapor transmission to low levels. On unpainted surfaces to preserve natural appearance while hiding significant color variations in the substrate.

Conpro Lastic: An elastomeric waterproof breathable membrane for vertical exterior surfaces.
Best Suited: Structures that require a membrane waterproofing treatment because of cracks, mortar joints, porosity and other physical characteristics that allow water, carbonation and other contaminants into the substrate.

Color Coat: A water-based acrylic coating for concrete and masonry substrates.
Best Suited: Ideal for weather protection of concrete and stucco. High vapor transmission makes this coating well suited for nosing and underside of balconies. Good performance to cost ratio.

Super Color Stain: A penetrating opaque water-based stain that provides uniform color to concrete and masonry.
Best Suited: Horizontal and vertical surfaces that require water repellency as well as uniform color.

TerraColor: Formulated to match colored glaze finishes.
Best Suited: Repairing and restoring terracotta and brick.

PERFORMANCE CRITERIA – HORIZONTAL APPLICATIONS


Elastideck
SuperColor Stain
Breathable/Vapor transmission
4
4
Flexible
5
2
Weather and Water Protection
5
3
Long-Term Durability
3
3
Carbonation Mitigation
5
2
Fade Resistance
4
4
Crack Bridging
5
1
Dirt Pick-up
2
5
Stain Resistance
2
5
Abrasion Resistance
4
4
Fugus and Mildew Resistance
4
4
Maintenance Requirement
4
4
Opacity / Hiding Power
5
3

Elastideck: A flexible, breathable waterproof membrane for horizontal surfaces.
Best Suited: Balconies, walkways and slab -on-grade surfaces. Excellent for pedestrian and light vehicular traffic.

Super Color Stain: A penetrating opaque water-based stain that provides uniform color to concrete and masonry.
Best Suited: Apply to Elastideck in the same color to provide resistance to dirt pick up and staining.

THINGS YOU SHOULD KNOW WHEN CHOOSING A COLOR AND COATING

The actual color of the coating and stain may vary from the color samples in this card.
Always order a wet sample to be applied to the intended substrate. Allow to cure for a minimum of 24 hours before evaluating.
Stains are generally used in a color similar to the substrate and tend to be more natural looking compared to paints.
Paints are generally used to change the color of the substrate.
Elastomeric coatings are used to waterproof substrates that have movement (cracking or when carbonation is a concern).
The curing rate will affect the final color of Conpro Stucco. Substrate absorption, temperature, wind, moisture and the changing angle of the sun or obstructions that block the sun while curing will contribute to color variation of cementitious coating.
Always apply a sample of the material to the structure to determine actual coverage and the degree of adhesion (ASTM D3359). Allow one week curing before conducting adhesion test.
Plastermix applied to concrete prior to a coating will dramatically improve the overall appearance by creating a uniform, bug-hole free surface.

Untreated CMU surface

Color Coat on CMU

One Coat

Two Coats

M3P Overcoat on CMU

One Coat

Two Coats

M3P on CMU

One Coat

Two Coats

Super Color Stain on CMU

One Coat

Two Coats

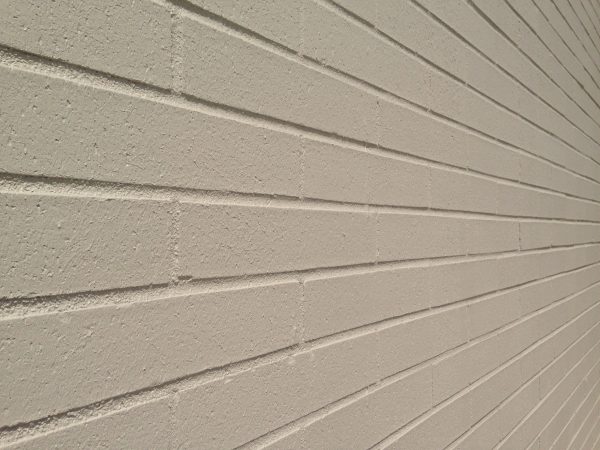

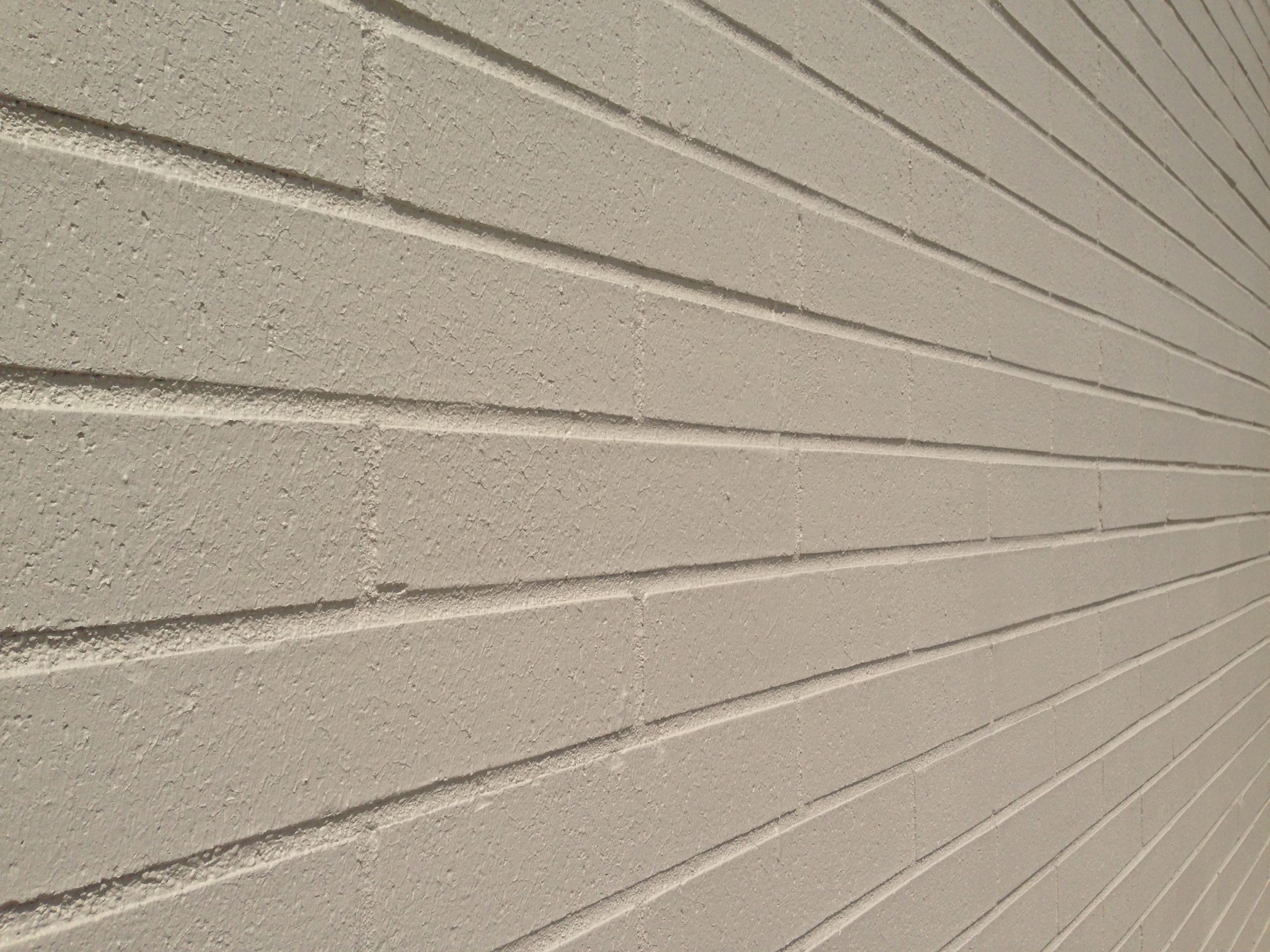

Conpro Lastic on CMU

Two Coats

Projects Showcase

TWA Terminal

TWA Terminal

Project History

Eero Saarinen, an influential American architect was commissioned to design the TWA terminal in 1956. Along with the structural engineers Ammann & Whitney the “birdlike” structure was conceived as a complete environment. The architectural expression was intended to embody movement and transition. The construction of the terminal required a staff of 14 engineers and 150 craftsman. The selection of a shell-type structure offered the most dramatic architectural opportunities and made TWA stand out at the airport. For the concrete framework, steel-pipe scaffolding was erected on a grid, with each vertical accurately placed to support the underside of the form at the proper elevation and position. The terminal was closed in 2001 after TWA ceased to exist. DOCOMOMO-US, the Municipal Art Society of New York as well as the New York Landmarks Conservancy have been active in protecting the iconic structure. Today the beautifully restored terminal has reopened as a portal for Jet Blue Airways.

Harbor Towers 2008



Harbor Towers 2008

Project History

The Harbor Towers were designed by architect I.M. Pei and constructed in the 1970s. In the mid 1990s the buildings had shown effects of their location in Boston Harbor.
Over a three-year period restorations and waterproofing to the building were made using Conpro Lastic. In 2008 the Towers were in need of a touch up, the appearance of the buildings was mottled and extremely dirty. These effects were again due to the constant ocean spray from the harbor coupled with the airborne particulate from the ten-year long “Big Dig”. Working with WJE, contractor NER Construction Management, Inc. found that the best solution was to prime the existing surface using Conproco Point 5 acrylic primer and recoat with Conpro Lastic elastomeric coating.
The building was power washed, primer was applied, followed by two 15-mil coats of Conpro Lastic. Conpro Lastic is a waterproof membrane, ideal for these high-rise buildings as it bridges minor cracking and performs well with the harsh conditions of the city and the driving rains of the North Atlantic.



Product Training Videos

Associated Products
