Where to use:
Protective repairs to vertical and overhead surfaces that match the color of the parent concrete.How to apply:
Trowel applied. Additional InformationMinimize InformationPerformance Characteristics
Sustainable Green Technology- Contains significant concentrations of both pre-and post-consumer recycled content.
- Maintains integrity of repair, resists cracking.
- Prevents delamination due to temperature change.
- Resistant to weathering action, excellent freeze/thaw stability and abrasion resistance.
- Resistant to deicing salts, carbonation, chloride, and chemical attack.
- Suitable for large areas.
- Available in 23 standard colors and custom color matching.
Surface Preparation
- Remove loose and deteriorated material, laitance, dirt, dust, oil and any surface contaminants that will inhibit proper bond.
- Saw cut edges with a diamond blade at a 90° angle to eliminate feather edging. Avoid polishing the edges as this will inhibit bond.
- Avoid bruising or micro cracking during surface preparation. Refer to ICRI Surface Preparation Guide 03732.
- Repair zone must be a minimum of 1 inch deep, of simple geometry, with no complex edge conditions.
- Avoid long narrow repairs; these have a tendency to crack.
- Saturate substrate with clean water, (saturated surface dry/SSD), with no standing water during application.
- Remove concrete from corroded steel and several inches beyond to expose non-corroded steel.
- Provide a 3/4-inch clearance between the concrete and steel.
- Damaged reinforcing steel should be inspected by a qualified engineer and appropriate action taken.
Priming
- Prime the prepared substrate including all edges with a bond coat of ISR CM. Work the bond coat into the substrate to ensure intimate contact and establish bond. ISR CM must be applied while bond coat is wet. If the bond coat dries, remove and reapply.
- Remove all scaling rust from embedded metal and steel. Apply ECB anti-corrosion coating.
Mixing
- Hand mixing – Measure ISR CM powder and water to achieve a 5 (+/-0.25) part powder to 1 part water ratio (or approximately 1 gallon of water per 50 lb. unit of ISR CM).
- Mechanical mixing – may require less water (ratio is approximately 5.5 to 6.0 parts powder to 1 part water).
- Pour measured water into a clean container suitable for mixing. Place 1/2 of the powder and mix until uniform. Add remaining 1/2 of powder and mix until fully blended and lump free.
- Mechanically mix using a low-speed drill (400-600 rpm) and mixing paddle or mortar mixer.
- Depending on pigment formulation, additional water may be added to achieve desired consistency for placement of the ISR CM. Over watering the mix will affect final color. For multiple batches, the additional water should be added in a uniform fashion to avoid color shift.
- Insufficient water will not hydrate the material and it will not achieve full strength.
- Mix only as much material as can be placed in 15-20 minutes.
- Do not over mix, as this will entrain excess air.
- Do not retemper, this will affect color.
Application
- At the time of application, surfaces should be saturated surface dry (SSD) but hold no standing water.
- Follow instructions for Priming.
- Force the material against the edges of the repair, working toward the center.
- Material may be applied in multiple lifts of not less than 1 inch and no greater than 2 inches.
- Consolidate each lift and allow to stiffen to thumb-print hard before continuing.
- Scratch (screed/open pores) each lift to prepare surface for subsequent lift.
- Repairs 2 inches or greater may be filled with ISR VO or ISR AG to within 1 inch of surface. Minimum depth of ISR CM is 1 inch.
- Over-build ISR CM final lift by 1/4 inch.
- Shave to final form with trowel edge up to 2 hours after application.
- Do not overwork the finish.
- Finishing techniques and the length of time the material has cured when shaved will have a significant effect on the appearance of the color and degree of texture.
Curing
- Keep repair zone damp for 24 hours. Refer to ACI 308R-01 for detailed curing recommendations. If repair is inaccessible, tape polyethylene over area to retain moisture. Do not allow polyethylene to contact material.
- Protect repair from direct sunlight, wind, rain and frost during curing period.
Clean Up
- Clean tools and equipment with water immediately after use.
- Cured material must be removed mechanically.
Theoretical Yield
Yield per Pail |
Repair Depth |
Square Feet |
---|---|---|
0.42 cubic feet |
1/2 Inch |
10.08 |
0.42 cubic feet |
1 Inch |
5.04 |
0.42 cubic feet |
1.5 Inches |
3.36 |
0.42 cubic feet |
2 Inches |
2.52 |
Product Handling
Packaging- 50 lb. plastic pails
- 18 months when properly stored.
- Transport and store in cool, clean, dry conditions in unopened containers.
- High temperature or high humidity will reduce shelf life.
Limitations
- Do not apply unless substrate and ambient temperature can be maintained at a minimum of 40°F for 24 hours. Refer to ACI Cold Weather Application Guidelines.
- Cold mixing water and low temperature will retard set. Hot water and high temperature will accelerate set.
- Protect application from precipitation and high wind for at least 8 hours.
- Do not add more water than specified, this will lower strengths, induce shrinkage cracking and alter final color.
- Avoid overworking material during placement and finishing – this will affect color and produce surface (map) cracking.
- Do not allow polyethylene or burlene to touch surface while curing as this will cause whitening of the material.
Health and Safety
- Product is alkaline.
- Do not ingest.
- Avoid breathing dust.
- Avoid contact with skin and eyes.
- Refer to Safety Data Sheet (SDS) for additional information.
First Aid
- In case of skin contact, wash thoroughly with soap and water.
- For eye contact, flush immediately with a high volume of water for at least 15 minutes and contact a medical professional.
- For respiratory problems, remove person to fresh air.
Disposal
- Dispose of material in accordance with local, state or federal regulations.
Associated Products
- Technical Data
- Data Bulletin
- CSI
- Competition
- Curing
- Float Guide
- FAQs
- Safety Data Sheet
- Technical Bulletin
- Color Card
- Development Booklet
Physical state and appearance | Dry powder with aggregate. | |
---|---|---|
Base | Portland cement | |
pH | >12 | |
Length change | ASTM C157 | <500 μstrains @ 28 days |
Slant shear bond strength – epoxy | ASTM C882 | 1250 psi |
Short-term bond strength | ICRI 03739* | 400 psi |
Freeze/thaw resistance - procedure A | ASTM C666 | Weight gain (%) 0. Expansion (%) 0. Durability Factor DF (%) 99. |
Tensile strength – psi | ASTM C307 | 530 @ 28 days |
7 days 28 days | ||
Compressive strength - psi | ASTM C39* | 3110 3530 |
*Data presented applies to non-pigmented base material where noted
FOR PROFESSIONAL USE ONLY
Conproco warrants this product for one year from the date of manufacture to be free from manufacturing defects and to meet the technical properties on the current technical data sheet if used as directed within shelf life. User determines suitability of product for use and assumes all risks. Buyer's sole remedy shall be limited to the purchase price or replacement of product, exclusive of labor or cost of labor. October 25, 2022.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED SHALL APPLY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CONPROCO CORP SHALL NOT BE LIABLE UPON ANY LEGAL THEORY FOR SPECIAL OR CONSEQUENTIAL DAMAGES.
Conproco | BASF | Euclid / Tamms | Mapei | Sika | USCP |
---|---|---|---|---|---|
MasterEmaco N400 RS; MasterEmaco N400; MasterEmaco N350 CI; MasterEmaco N423 RS; MasterEmaco N425; MasterEmaco N426 | Euco Repair V100; Verticoat; Verticoat Supreme; Speed Crete PM | Planitop X; Planitop XS | SikaTop 123; SikaRepair SAJ; SikaRepair HSB; Monotop 615 | Thin Patch V/O | |
MasterEmaco N424; MasterEmaco N205; MasterEmaco N220 | EucoPatch; Speed Crete Red Line | Planitop X; Planitop XS | Sika Repair 223; SikaQuick VOH; SikaRepair SHA; SikaRepair SHB | HP Multi-Purpose Repair Mortar | |
MasterEmaco S488 CI; MasterEmaco S487 SP | Tamms Structural Mortar | Planitop 12 | SikaRepair 224; SikaRepair SHB; SikaCem Monotop 615 | None | |
MasterEmaco S440; MasterEmaco S440 CI; MasterEmaco S447 MC; MasterEmaco S466 CI; MasterEmaco S47 7CI | EucoCrete; Tamms Form & Pour; EucoRepair SCC | Planitop 15; Planitop FD; Planitop 11 SCC; | SikaCrete 211; SikaCrete 211 SC Plus; MonoTop 611; SikaTop 111 Plus | Deckmix AE | |
MasterEmaco T310 CI | Concrete-Top Supreme; Thin Top Supreme; Euco Re-Cover | Mapecem 102 | SikaRepair 222 w/LatexR | None | |
MasterEmaco N424; MasterEmaco N205; MasterEmaco N220 | EucoPatch; Speed Crete Red Line | Planitop X; Planitop XS | SikaRepair 223; SikaQuick VOH; SikaRepair SHA; SikaRepair SHB | None | |
MasterEmaco T310 CI; MasterEmaco S446 CI; MasterEmaco S487 SP; MasterEmaco S488 CI | Concrete-Top Supreme; Thin Top Supreme; Euco Re-Cover; EucoRepair SCC; Tamms Structural Mortar | Mapecem 102; Planitop 11 SCC; Planitop 12 | SikaRepair 222 w/LatexR; SikaCrete 211; SikaCrete 211 SC Plus; SikaRepair 224; SikaRepair SHB; SikaCem Monotop 615 | Deckmix AE | |
None | None | None | None | None |
Cementitous Products
Product | Minimum Temperature | Minimum to 55° F | 55°F – 70° F | 70° F and above | Minimum Time to Coat |
---|---|---|---|---|---|
ISR CM | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
ISR VO | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
ISR AG | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro Set | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Quick Shot | 40° | 8 Hours | 2 Hours | 1 Hour | 3 to 5 days depending on temperature |
Forment (remove forms) | 40° | 72 Hours | 48 Hours | 24 Hours | 3 to 5 days depending on temperature |
Gun Shot LPS | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Injection Grout (remove clay) | 40° | 24 Hours | 24 Hours | 24 Hours | 3 to 5 days depending on temperature |
One Shot 2C | 45° | 24 Hours | 12 Hours | 6 Hours | 3 to 5 days depending on temperature |
Matrix | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Matrix TR | 50° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Repoint | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Plastermix | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Structural Skin | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro One Coat | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Conpro Stucco | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Foundation Coat | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Super Seal | 40° | 12 Hours | 4 Hours | 2 Hours | 3 to 5 days depending on temperature |
Liquid Products
Product | Minimum Temperature | Minimum to 55° F | 55°F – 70° F | 70° F and above | Minimum Time to Coat |
---|---|---|---|---|---|
Conpro Start | 40° | 18 Hours | 12 Hours | 6 Hours | Refer to temperature |
ECB | 40° | 8 Hours | 1 Hour | 30 Minutes | Dry to touch |
Primer | 40° | 8 Hours | 1 Hour | 30 Minutes | Color change to orange |
Shield MX | 40° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
M3P & M3P-X | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
M3P Overcoat | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Conpro Lastic | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Color Coat | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Super Color Stain | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Elastideck | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Terra Color | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Terracotta Finish | 45° | 24 Hours | 18 Hours | 12 Hours | Dry to touch |
Plastering Trowel | Finishing Trowel | Pool Trowel | Margin Trowel | Floats | |
---|---|---|---|---|---|
ISR CM | X | Red | |||
ISR VO | X | Red | |||
ISR AG | X | X | |||
Conpro Set | X | Red | |||
Quick Shot | X | Red | |||
Gun Shot LPS | X | X | X | ||
One Shot 2C | X | X | |||
Elastideck | X | X | |||
Plastermix | X | X | Green | ||
Matrix | X | Red | |||
Matrix TR | Red | ||||
Structural Skin | X | X | |||
One Coat | X | X | |||
Stucco | X | X | Green | ||
Foundation Coat | X | X |
Post World War II concrete structures are of an age that often requires repair and restoration. Most repair mortars are a noticeably different color from the parent concrete. The repairs create a patchwork appearance which detracts from the overall aesthetic of the structure. Painting the structure to hide the patches is generally not an acceptable option.
ISR CM, is a repair mortar specifically designed to match the color and texture of concrete substrates. ISR CM provides a repair that is more natural in appearance and sympathetic to the structure. ISR CM (Color Matched) preserves the original aesthetic while eliminating the cost and maintenance issues associated with painting.
The ISR System provides color matched concrete repairs. When installed it is cost competitive with general repair mortars. ISR CM is part of a system of ISR products. Both ISR VO and ISR AG are compatible as fill materials for deep repairs.
ISR CM is available in 23 standard colors, at Conproco dealers and Conproco Kiosk Dealers. Custom colors are available through Conproco's two color matching facilities.
A KIOSK dealer has the ability to do color matching at the store. They can provide quick turnaround of color samples as well as producing pails of finished product.
-

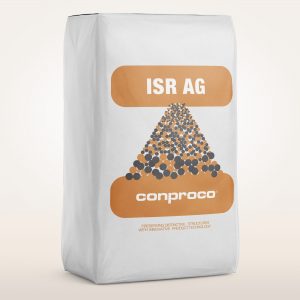

ISR AG
