Gun Shot LPS

Gunshot LPS is spray applied with low-pressure spray equipment to vertical and overhead concrete substrates when repairing vertical and overhead concrete structures.

Where to use:

High production vertical and overhead concrete repairs.

How to apply:

Spray or trowel applied. Additional Information

Performance Characteristics

  • Low shrinkage Maintains integrity of repair, resists cracking.
  • Thermal compatibility Prevents delamination due to temperature change.
  • Corrosion protection Protects reinforcing steel in repair zone and suppresses ring anode effect.
  • Durable Resistant to weathering action, excellent freeze/thaw stability and abrasion resistance.
  • Very low permeability Resistant to deicing salts, carbo- nation, chloride, and chemical attack.
  • High build Place up to 2 inch lifts without rebound.
  • Economical Improves productivity.
  • Consistent results Excellent consolidation around reinforcing steel.
  • High early strength Minimize out-of-service time.

Surface Preparation

  • Remove loose and deteriorated material, laitance, dirt, dust, oil and any surface contaminants that will inhibit proper bond.
  • Saw cut edges with a diamond blade at a 90° angle to eliminate feather edging. Avoid polishing the edges as this will inhibit bond.
  • Avoid bruising or micro cracking during surface preparation. Refer to ICRI Surface Preparation Guide 03732.
  • Repair zone must be a minimum of 1/4 inch deep, of simple geometry, with no complex edge conditions.
  • Avoid long narrow repairs; these have a tendency to crack.
  • Apply Conpro Start where a consolidant is of benefit.
  • Saturate substrate with clean water, (saturated surface dry/SSD), with no standing water during Priming or Application.
  • Remove concrete from corroded steel and several inches beyond to expose non-corroded steel.
  • Provide a 3/4 inch clearance between the concrete and steel.
  • Damaged reinforcing steel should be inspected by a qualified engineer and appropriate action taken.

Priming

Concrete
  • Apply Conpro Primer, or ECB as a bonding primer to all exposed surfaces. Refer to the individual product technical data bulletin for information.
Reinforcing Steel
  • Remove all scaling rust from reinforcing steel.
  • Apply ECB anti-corrosion coating.

Mixing

  • Mechanically mix using a low speed drill (400-600 rpm) and mixing paddle or mortar mixer.
  • Pour 2-1/4 quarts of potable water into a clean mixing vessel and slowly add all of the powder.
  • Mix continuously for 3 minutes to a uniform, lump-free consistency.
  • Add up to 1 pint of additional water, if needed.
  • Allow to “breathe” for 1 minute and remix for 1 minute. This will improve workability and open time.
  • Do not overmix, as this will entrain excess air.
  • Do not re-temper.

Application

  • At the time of application, surfaces should be saturated surface dry (SSD) but hold no standing water.
  • Follow instructions for Priming.
Spray Application
  • Material should be applied by an experienced nozzle man using a rotor/stator or peristaltic pump.
  • Follow ACI 506R,for recommendations for wet process shotcrete.
  • Material may be applied in multiple lifts of not less than 3/8 inch and no greater than 2 inches.
  • Allow material to stiffen to thumb-print hard before continuing.
  • Scratch (cross-hatch) each lift to prepare surface for subsequent lift.
  • Strike off with straight edge to a uniform plane, close with a trowel or sponge float.
Trowel Application
  • Force the material against the edges of the repair, working toward the center.
  • Material may be applied in multiple lifts of not less than 3/8 inch and no greater than 2 inches.
  • Consolidate each lift and allow to stiffen to thumb-print hard before continuing.
  • Scratch (cross-hatch) each lift to prepare surface for subsequent lift.
  • Finish with a sponge float or trowel.
  • Do not overwork the finish.

Curing

  • Dampen the repair with a fine mist of water for 24 hours or moist cure with wet burlap and polyethylene. Alternatively, apply ProMasonry Cure & Seal.
  • Protect repair from direct sunlight, wind, rain and frost during curing period.

Clean Up

  • Clean tools and equipment with water immediately after use.
  • Cured material must be removed mechanically.

Coverage/Yield

  • 0.41 ft³/50 lbs.

Product Handling

  • Packaging 50 lb paper bags.
  • Shelf Life 12 months when properly stored.
  • Storage Transport and store in cool, clean, dry conditions in unopened containers. High temperature or high humidity will reduce shelf life.

Limitations

  • Do not apply unless substrate and ambient temperature can be maintained at a minimum of 40°F for 24 hours. Refer to ACI Cold Weather Application Guidelines.
  • Cold mixing water and low temperature will retard set. Hot water and high temperature will accelerate set.
  • Protect application from precipitation and high wind for at least 8 hours.
  • Do not add more water than specified, this will lower strengths and cause shrinkage cracking.
  • Avoid overworking material during placement and finishing – this will produce surface (map) cracking.

Health and Safety

  • Product is alkaline.
  • Do not ingest.
  • Avoid breathing dust.
  • Avoid contact with skin and eyes.
  • Refer to Safety Data Sheet (SDS) for additional information.

First Aid

  • In case of skin contact, wash thoroughly with soap and water.
  • In case of eye contact, flush immediately with a high volume of water for at least 15 minutes and contact a medical professional.
  • For respiratory problems, remove person to fresh air.

Disposal

  • Dispose of material in accordance with local, state and federal regulations.
  • Technical Data
  • Data Bulletin
  • CSI Spec
  • Competition
  • Curing
  • Pump & Spray
  • FAQs
  • Safety Data Sheet

Physical state and appearance



Fine, gray powder with glass fibers

Base



Portland cement with silica fume

pH



>12

Density

Hardened

135 lbs./ft.³

Setting time by vicat needle

ASTM C191

Initial 30 minutes – Final 60 minutes

Percent air – pressure method

ASTM C231

3 - 5%

Resistance to deicing chemicals under freeze/thaw

ASTM C672

50 cycles – no effect

Slough

ACI 506 R90

None



Rebound

Vertical

None




7 days

14 Days

28 days

Compressive strength - psi

ASTM C109

7275

7350

7400

Typical performance data representing material vertically applied and cured in field under varying temperatures. Test performed at 2-1/4 quarts of water per bag.

FOR PROFESSIONAL USE ONLY

Conproco warrants this product for one year from the date of manufacture to be free from manufacturing defects and to meet the technical properties on the current technical data sheet if used as directed within shelf life. User determines suitability of product for use and assumes all risks. Buyer's sole remedy shall be limited to the purchase price or replacement of product, exclusive of labor or cost of labor. January 8, 2016.

NO OTHER WARRANTIES EXPRESSED OR IMPLIED SHALL APPLY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CONPROCO CORP SHALL NOT BE LIABLE UPON ANY LEGAL THEORY FOR SPECIAL OR CONSEQUENTIAL DAMAGES.

Conproco
BASF
Euclid / Tamms
Mapei
Sika
USCP
MasterEmaco N400 RS; MasterEmaco N400; MasterEmaco N350 CI; MasterEmaco N423 RS; MasterEmaco N425; MasterEmaco N426
Euco Repair V100; Verticoat; Verticoat Supreme; Speed Crete PM
Planitop X; Planitop XS
SikaTop 123; SikaRepair SAJ; SikaRepair HSB; Monotop 615
Thin Patch V/O
MasterEmaco N424; MasterEmaco N205; MasterEmaco N220
EucoPatch; Speed Crete Red Line
Planitop X; Planitop XS
Sika Repair 223; SikaQuick VOH; SikaRepair SHA; SikaRepair SHB
HP Multi-Purpose Repair Mortar
MasterEmaco S488 CI; MasterEmaco S487 SP
Tamms Structural Mortar
Planitop 12
SikaRepair 224; SikaRepair SHB; SikaCem Monotop 615
None
MasterEmaco S440; MasterEmaco S440 CI; MasterEmaco S447 MC; MasterEmaco S466 CI; MasterEmaco S47 7CI
EucoCrete; Tamms Form & Pour; EucoRepair SCC
Planitop 15; Planitop FD; Planitop 11 SCC;
SikaCrete 211; SikaCrete 211 SC Plus; MonoTop 611; SikaTop 111 Plus
Deckmix AE
MasterEmaco T310 CI
Concrete-Top Supreme; Thin Top Supreme; Euco Re-Cover
Mapecem 102
SikaRepair 222 w/LatexR
None
MasterEmaco N424; MasterEmaco N205; MasterEmaco N220
EucoPatch; Speed Crete Red Line
Planitop X; Planitop XS
SikaRepair 223; SikaQuick VOH; SikaRepair SHA; SikaRepair SHB
None
MasterEmaco T310 CI; MasterEmaco S446 CI; MasterEmaco S487 SP; MasterEmaco S488 CI
Concrete-Top Supreme; Thin Top Supreme; Euco Re-Cover; EucoRepair SCC; Tamms Structural Mortar
Mapecem 102; Planitop 11 SCC; Planitop 12
SikaRepair 222 w/LatexR; SikaCrete 211; SikaCrete 211 SC Plus; SikaRepair 224; SikaRepair SHB; SikaCem Monotop 615
Deckmix AE
None
None
None
None
None

Cementitous Products

Product
Minimum Temperature
Minimum to 55° F
55°F – 70° F
70° F and above
Minimum Time to Coat
ISR CM
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
ISR VO
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
ISR AG
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro Set
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Quick Shot
40°
8 Hours
2 Hours
1 Hour
3 to 5 days depending on temperature
Forment (remove forms)
40°
72 Hours
48 Hours
24 Hours
3 to 5 days depending on temperature
Gun Shot LPS
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Injection Grout (remove clay)
40°
24 Hours
24 Hours
24 Hours
3 to 5 days depending on temperature
One Shot
40°
24 Hours
12 Hours
6 Hours
3 to 5 days depending on temperature
Matrix
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Matrix TR
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Repoint
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Plastermix
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Structural Skin
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro One Coat
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro Stucco
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Foundation Coat
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Super Seal
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature

Liquid Products

Product
Minimum Temperature
Minimum to 55° F
55°F – 70° F
70° F and above
Minimum Time to Coat
Conpro Start
40°
18 Hours
12 Hours
6 Hours
Refer to temperature
ECB
40°
8 Hours
1 Hour
30 Minutes
Dry to touch
Primer
40°
8 Hours
1 Hour
30 Minutes
Color change to orange
Shield MX
40°
24 Hours
18 Hours
12 Hours
Dry to touch
M3P & M3P-X
45°
24 Hours
18 Hours
12 Hours
Dry to touch
M3P Overcoat
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Conpro Lastic
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Color Coat
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Super Color Stain
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Elastideck
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Terra Color
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Terracotta Finish
45°
24 Hours
18 Hours
12 Hours
Dry to touch

Gunshot LPS is a fiber-reinforced mortar formulated to be applied with low pressure spray equipment. Low pressure spray is much more efficient than hand patching when placing large repairs.  It is also well suited for repair zones that are congested with rebar.

Gunshot LPS can be sprayed through most carousel and rotor stator pumps.

Strike off with a straight edge to a uniform plane, close with a trowel or sponge float.

Yes.  The ability to use as a spray or hand applied material reduces the number of products on a job.

Projects Showcase

Winchester Arms

Project History

Winchester Repeating Arms Company, famous for manufacturing the “Gun that Won the West,” set up shop in downtown New Haven, CT in 1847. Business boomed and by the 1870s, “Winchester” was famous the world over for quality, service and craftsmanship. In 1988, the Winchester Repeating Arms Company Historic District was listed on the National Register of Historic Places. Its New Haven plant closed in 2006 and factory spaces fell into disrepair until developers made plans to transform the dilapidated building complex into one of New Haven’s newest neighborhoods, Winchester Lofts.

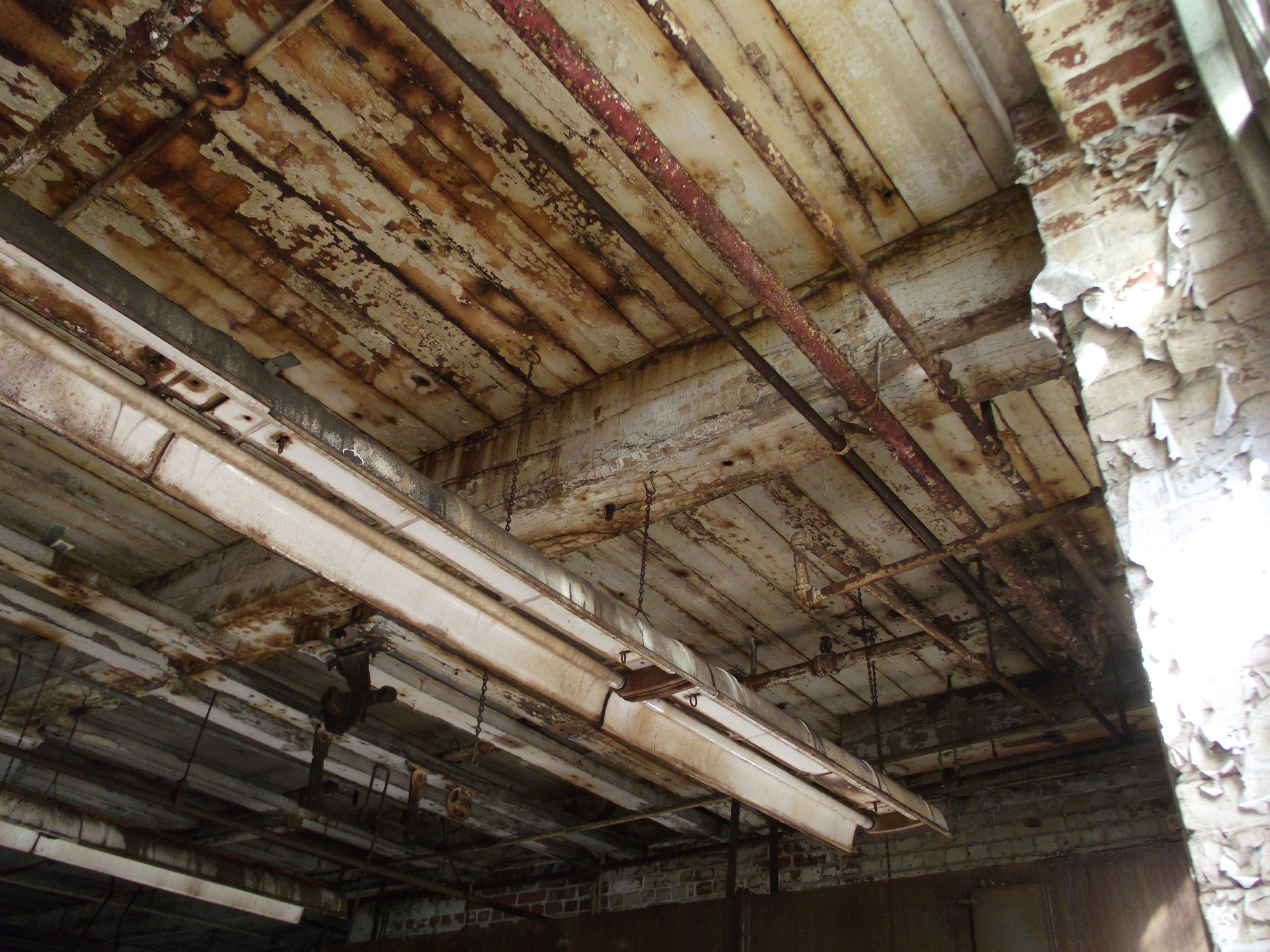

The interior was completely gutted and the spalled, deteriorated concrete on the floor slabs, beams, columns and window openings was repaired. Conpro Set was used for hand applied repairs. Forment ® was selected for larger areas where forming and pouring is more practical and cost-effective.

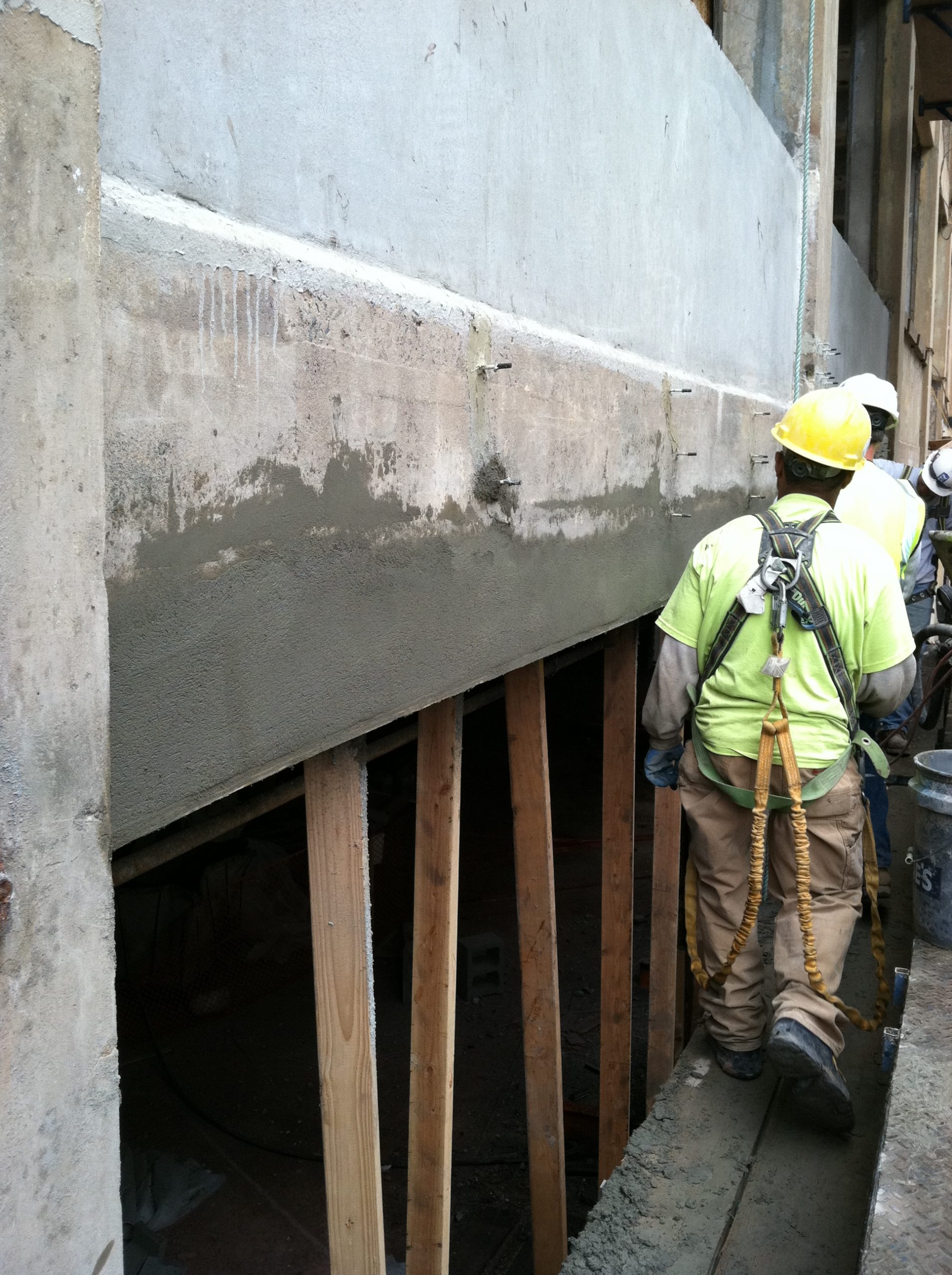

The exterior concrete columns and spandrels were repaired using ECB rebar coating and Gunshot LPS then coated with Conpro Lastic. The original brick infills were partially demolished to allow for larger windows. The remaining brick areas under the window sill and above the spandule beam were refaced with Structural Skin ® to stabilize, strengthen and fill voids from deteriorating mortar joint and then coated with Conpro Lastic to further protect and waterproof it.
Ultimately this system was more cost effective than repointing and provided a cleaner, more contemporary monolithic appearance the architect was looking for.

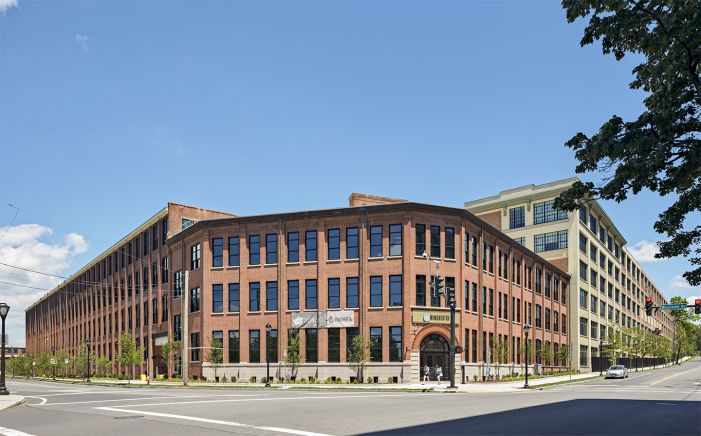

Loom City Lofts

Project History

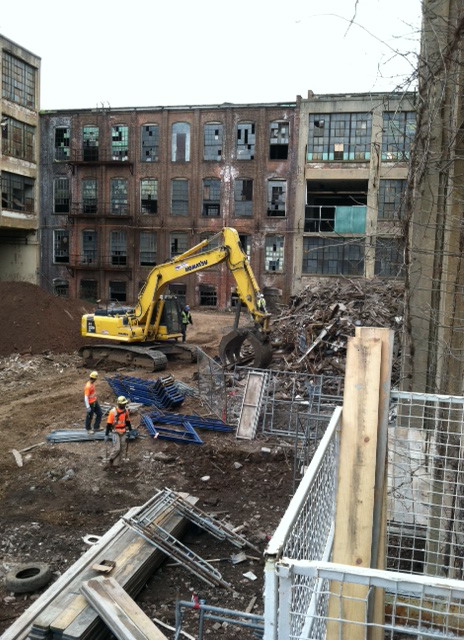

In 1906, the wool producing Minterburn Mill, was one of the first structures in New England constructed entirely with reinforced concrete technology. The building was purchased in 1968 by sweater manufacturer Roosevelt Mills. The company, with sales offices in New York City, became an industry leader and innovator and at its peak, sold 12,000 sweaters a week to major retail chains like J.C. Penny and Montgomery Ward. The business and building were sold to new owners in 1986 and closed just two years later. The nearly 100-year-old building which is on the National Register of Historic Places remained vacant until its purchase in 2002.
New owners laid plans to convert it into an industrial-themed apartment building. The scope of work approved for the building and smokestack by architect James K. Grant Associates and carried out by Armani Restoration, included a three step process using a system of repair and protection products from Conproco, formulated specifically for the intended application method and desired outcome. The goal was to first arrest rebar corrosion with ECB, a single component, zinc-rich acrylic primer. Second, repair severe concrete deterioration inside and out with both Gunshot LPS, a spray or trowel-on mortar and Forment®, a high-flow pumped or poured repair mortar. And finally, apply Conpro Lastic, a durable, breathable, opaque and aesthetically pleasing, flexible, waterproof, anti-carbonation coating to provide additional protection.
The Connecticut Trust for Historic Preservation presented Loom City Lofts with an Award of Merit for its efforts in historic preservation in April 2016.
