Conpro Set

Set is a versatile, fast setting, polymer modified mortar for restoring concrete structures with decorative elements. It is shaveable for vertical and overhead repairs.

Where to use:

Structural and protective repairs to vertical, overhead, and horizontal concrete.

How to apply:

Trowel applied. Additional Information

Performance Characteristics

Low shrinkage
  • Maintains integrity of repair, resists cracking.
Thermal compatibility
  • Prevents delamination due to temperature change.
Corrosion protection
  • Protects reinforcing steel in repair zone and suppresses ring anode effect.
Durable
  • Resistant to weathering action, excellent freeze/thaw stability and abrasion resistance.
Very low permeability
  • Resistant to deicing salts, carbonation, chloride, and chemical attack.
Shaveable
  • Recreate sharp edges and architectural details.
Single component
  • Easy to batch in less than full bag quantities.

Surface Preparation

  • Remove loose and deteriorated material, laitance, dirt, dust, oil and any surface contaminants that will inhibit proper bond.
  • Saw cut edges with a diamond blade at a 90° angle to eliminate feather edging. Avoid polishing the edges, as this will inhibit bond.
  • Avoid bruising or micro cracking during surface preparation. Refer to ICRI Surface Preparation Guide 03732.
  • Repair zone must be a minimum of 3/8 inch deep, of simple geometry, with no complex edge conditions.
  • Avoid long narrow repairs; these have a greater tendency to crack.
  • Apply Conpro Start where a consolidant is of benefit (soft, powdery surfaces).
  • Saturate substrate with clean water, (saturated surface dry/SSD), with no standing water during Priming or Application.
  • Remove concrete from corroded steel and several inches beyond to expose non-corroded steel.
  • Provide a 3/4 inch clearance between the concrete and steel.
  • Damaged reinforcing steel should be inspected by a qualified engineer and appropriate action taken.

Priming

Concrete
  • Prime the prepared substrate including all edges with a slurry coat of the repair mortar. Work the slurry into the substrate to ensure intimate contact and establish bond. The repair material must be applied while slurry is wet. If the slurry dries, remove and recoat.
  • Alternatively, use Conpro Primer or ECB as a bonding primer.
  • Refer to the individual product technical data bulletin for information.
Reinforcing Steel
  • Remove all scaling rust from reinforcing steel. Apply ECB anti- corrosion coating.

Mixing

  • Mechanically mix using a low speed drill (400 – 600 rpm) and mixing paddle or mortar mixer.
  • Pour 3-1/2 quarts of potable water into a clean mixing vessel and slowly add all 50 lbs. of material.
  • Maintain the same water to Conpro Set ratio when mixing less than full 50 lbs. units.
  • Proper mix ratio is 4 ¾ parts powder to 1 part water.
  • Mix continuously for 3 minutes to a uniform, lump-free, stiff mortar consistency.
  • Add up to 1 pint of additional water if needed.
  • Allow to “breathe” for 1 minute and remix for 1 minute. This will improve workability and open time.
  • Mix only as much material as can be placed in 10 – 15 minutes.
  • Do not over mix, as this will entrain excess air.
  • Do not re-temper, this will damage the cross-linking of the polymer and cause cracking and loss of bond.

Application

  • At the time of application, surfaces should be saturated surface dry (SSD) but hold no standing water.
  • Follow instructions for Priming.

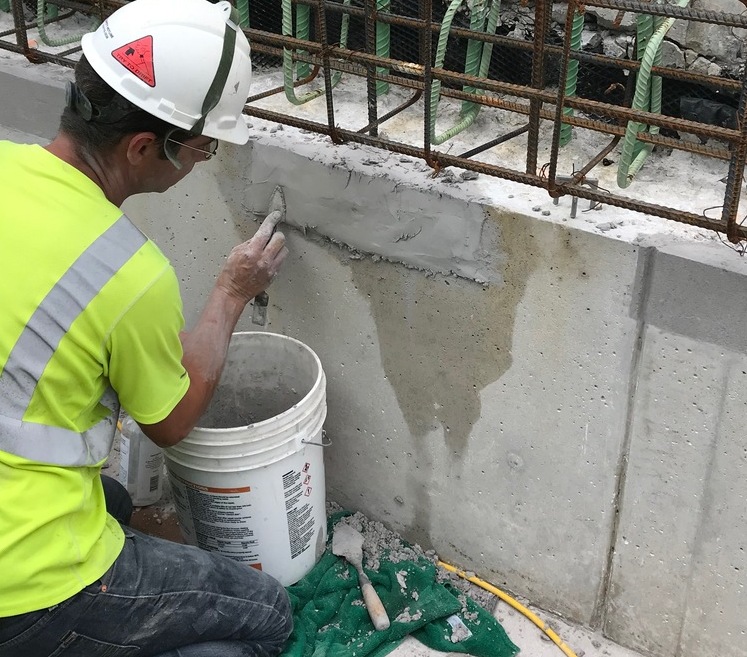

  • Force the material against the edges of the repair, working toward the center.
  • Material may be applied in multiple lifts of not less than 3/8 inch and no greater than 2 inches.
  • Consolidate each lift and allow to stiffen to thumb-print hard before continuing.
  • Scratch (cross-hatch) each lift to prepare surface for subsequent lift.
  • Over-build final lift by 1/4 inch and allow to take initial set.
  • Shave to final form with trowel edge up to 2 hours after application.
  • Finish with a sponge float or trowel.
  • Do not overwork the finish.
  • For applications over 2 inches add a maximum of 30 lbs. of 3/8 inch aggregate per 50 lbs. bag. Aggregate must be non-reactive, low absorption, graded and high density.

Curing

  • Dampen the repair with a fine mist of water for 24 hours or moist cure with wet burlap and polyethylene.
  • Protect repair from direct sunlight, wind, rain and frost during curing period.

Clean Up

  • Clean tools and equipment with water immediately after use. Cured material must be removed mechanically.

Coverage/Yield

  • 0.42 ft.³/50 lbs.
  • 0.65 ft.³ when extended with 30 lbs. of 3/8 inch aggregate.

Product Handling

Packaging

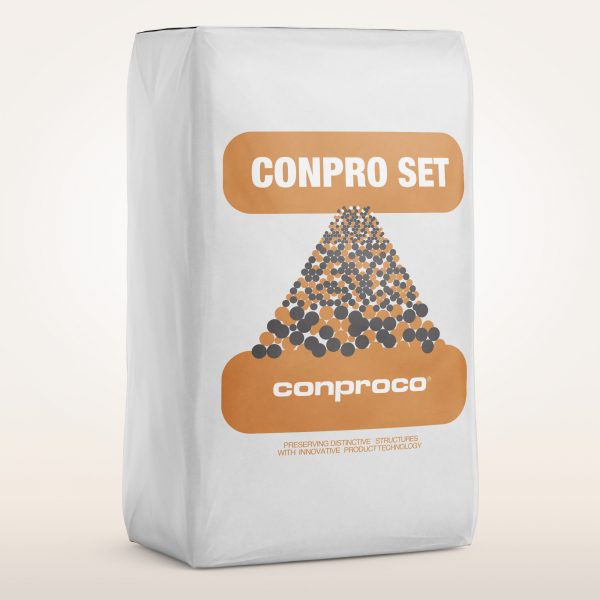

  • 50 lbs. paper bags.

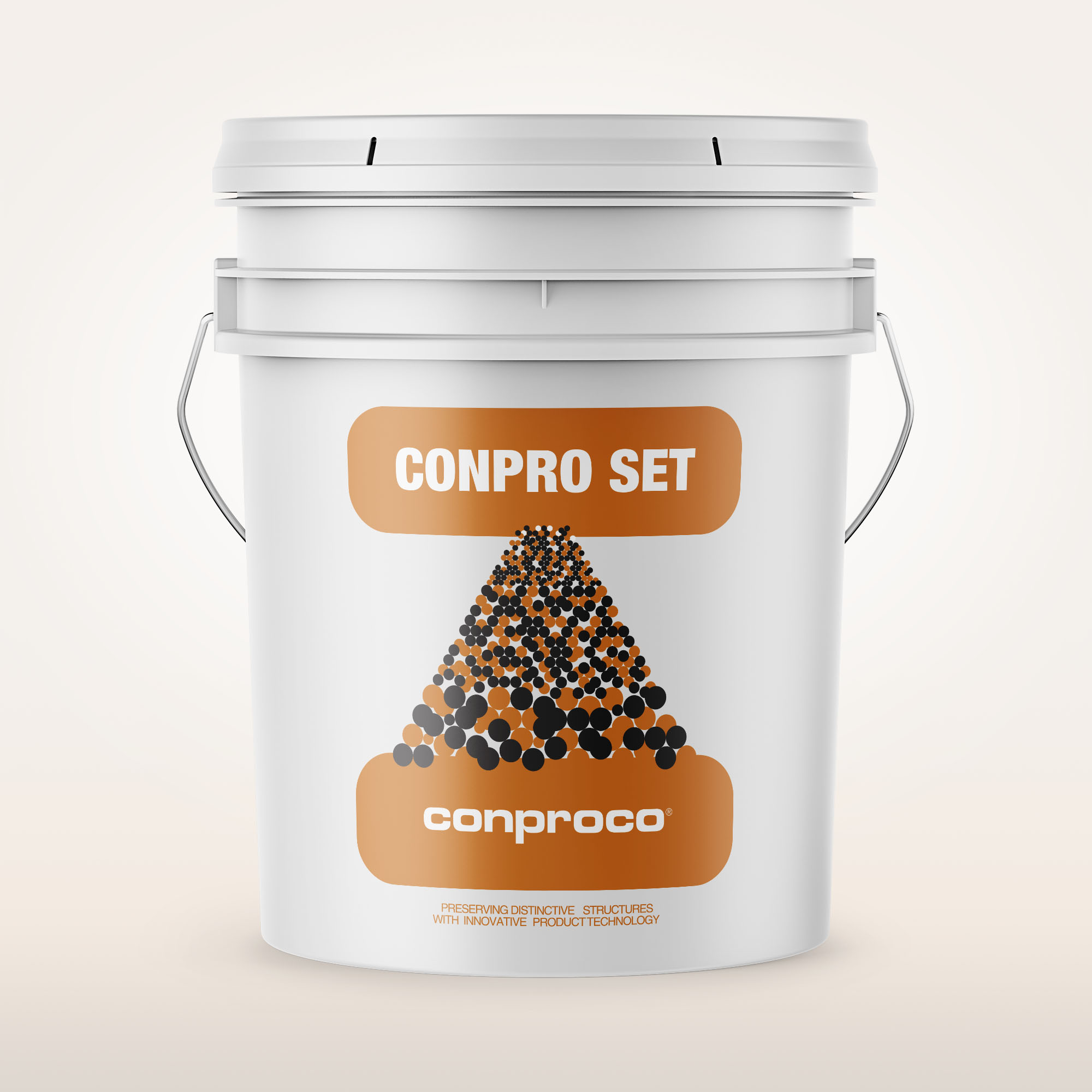

  • 10 lbs. and 50 lbs. plastic pails.
Shelf Life
  • Bag – 12 months when properly stored.
  • Pail – 18 months when properly stored.
Storage
  • Transport and store in cool, clean, dry conditions in unopened containers.
  • High temperature or high humidity will reduce shelf life.

Limitations

  • Do not apply unless substrate and ambient temperature can be maintained at a minimum of 40°F for 24 hours. Refer to ACI Cold Weather Application Guidelines.
  • Cold mixing water and low temperature will retard set.
  • Hot water and high temperature will accelerate set.
  • Protect application from precipitation and high wind for at least 8 hours.
  • Do not add more water than specified – this will lower strengths and cause shrinkage cracking.
  • Do not re-temper polymer modified materials.
  • Avoid overworking material during placement and finishing – this will produce surface (map) cracking.
  • Surface whitening can occur when polyethylene is in contact with the material during the first 24 hours of curing.

Health and Safety

  • Product is alkaline.
  • Do not ingest.
  • Avoid breathing dust.
  • Avoid contact with skin and eyes.
  • Refer to Safety Data Sheet (SDS) for additional information.

First Aid

  • In case of skin contact, wash thoroughly with soap and water.
  • For eye contact, flush immediately with a high volume of water for at least 15 minutes and contact a medical professional.
  • For respiratory problems, remove person to fresh air.

Disposal

  • Dispose of material in accordance with local, state and federal regulations.
  • Technical Data
  • Data Bulletin
  • CSI Spec
  • Competition
  • Curing
  • Pump & Spray
  • FAQs
  • Safety Data Sheet

Physical state and appearance



Fine, gray powder

Base



Portland cement

pH

Wet mix

>12

Water/cement ratio



0.43

Density

Wet mix

130 lbs./ft.³

Durometer hardness

ASTM D2240

80 - 85%

Percent air

Wet mix

5.3%

Resistance to deicing chemicals under freeze/thaw

ASTM C672

Passed 50 cycles – visual rating 0

Length change

ASTM C157

500 μstrains @ 28 days

Modulus of elasticity Extended*

ASTM C469

2.7 x 10

 3.2 x 10

Slant shear bond strength - latex

ASTM C1042

1605 psi – 14 days



1 Day

7 Days

14 Days

28 Days

Compressive strength – psi

ASTM C109

3000

5000



5900

Flexural strength – psi

ASTM C348

590

845

880

930

Tensile strength – psi

ASTM C307

360

550

600

680

Tensile bond strength – psi

ASTM C932



210

250

400

Splitting tensile strength – cylinders – psi

ASTM C496



660

*Extend with 30 lbs. of 3/8 inch aggregate per 50 lbs. of material.

FOR PROFESSIONAL USE ONLY

Conproco warrants this product for one year from the date of manufacture to be free from manufacturing defects and to meet the technical properties on the current technical data sheet if used as directed within shelf life. User determines suitability of product for use and assumes all risks. Buyer's sole remedy shall be limited to the purchase price or replacement of product, exclusive of labor or cost of labor. June 25, 2020.

NO OTHER WARRANTIES EXPRESSED OR IMPLIED SHALL APPLY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CONPROCO CORP SHALL NOT BE LIABLE UPON ANY LEGAL THEORY FOR SPECIAL OR CONSEQUENTIAL DAMAGES.

Conproco
BASF
Euclid / Tamms
Mapei
Sika
USCP
MasterEmaco N400 RS; MasterEmaco N400; MasterEmaco N350 CI; MasterEmaco N423 RS; MasterEmaco N425; MasterEmaco N426
Euco Repair V100; Verticoat; Verticoat Supreme; Speed Crete PM
Planitop X; Planitop XS
SikaTop 123; SikaRepair SAJ; SikaRepair HSB; Monotop 615
Thin Patch V/O
MasterEmaco N424; MasterEmaco N205; MasterEmaco N220
EucoPatch; Speed Crete Red Line
Planitop X; Planitop XS
Sika Repair 223; SikaQuick VOH; SikaRepair SHA; SikaRepair SHB
HP Multi-Purpose Repair Mortar
MasterEmaco S488 CI; MasterEmaco S487 SP
Tamms Structural Mortar
Planitop 12
SikaRepair 224; SikaRepair SHB; SikaCem Monotop 615
None
MasterEmaco S440; MasterEmaco S440 CI; MasterEmaco S447 MC; MasterEmaco S466 CI; MasterEmaco S47 7CI
EucoCrete; Tamms Form & Pour; EucoRepair SCC
Planitop 15; Planitop FD; Planitop 11 SCC;
SikaCrete 211; SikaCrete 211 SC Plus; MonoTop 611; SikaTop 111 Plus
Deckmix AE
MasterEmaco T310 CI
Concrete-Top Supreme; Thin Top Supreme; Euco Re-Cover
Mapecem 102
SikaRepair 222 w/LatexR
None
MasterEmaco N424; MasterEmaco N205; MasterEmaco N220
EucoPatch; Speed Crete Red Line
Planitop X; Planitop XS
SikaRepair 223; SikaQuick VOH; SikaRepair SHA; SikaRepair SHB
None
MasterEmaco T310 CI; MasterEmaco S446 CI; MasterEmaco S487 SP; MasterEmaco S488 CI
Concrete-Top Supreme; Thin Top Supreme; Euco Re-Cover; EucoRepair SCC; Tamms Structural Mortar
Mapecem 102; Planitop 11 SCC; Planitop 12
SikaRepair 222 w/LatexR; SikaCrete 211; SikaCrete 211 SC Plus; SikaRepair 224; SikaRepair SHB; SikaCem Monotop 615
Deckmix AE
None
None
None
None
None

Cementitous Products

Product
Minimum Temperature
Minimum to 55° F
55°F – 70° F
70° F and above
Minimum Time to Coat
ISR CM
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
ISR VO
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
ISR AG
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro Set
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Quick Shot
40°
8 Hours
2 Hours
1 Hour
3 to 5 days depending on temperature
Forment (remove forms)
40°
72 Hours
48 Hours
24 Hours
3 to 5 days depending on temperature
Gun Shot LPS
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Injection Grout (remove clay)
40°
24 Hours
24 Hours
24 Hours
3 to 5 days depending on temperature
One Shot
40°
24 Hours
12 Hours
6 Hours
3 to 5 days depending on temperature
Matrix
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Matrix TR
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Repoint
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Plastermix
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Structural Skin
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro One Coat
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Conpro Stucco
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Foundation Coat
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature
Super Seal
40°
12 Hours
4 Hours
2 Hours
3 to 5 days depending on temperature

Liquid Products

Product
Minimum Temperature
Minimum to 55° F
55°F – 70° F
70° F and above
Minimum Time to Coat
Conpro Start
40°
18 Hours
12 Hours
6 Hours
Refer to temperature
ECB
40°
8 Hours
1 Hour
30 Minutes
Dry to touch
Primer
40°
8 Hours
1 Hour
30 Minutes
Color change to orange
Shield MX
40°
24 Hours
18 Hours
12 Hours
Dry to touch
M3P & M3P-X
45°
24 Hours
18 Hours
12 Hours
Dry to touch
M3P Overcoat
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Conpro Lastic
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Color Coat
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Super Color Stain
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Elastideck
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Terra Color
45°
24 Hours
18 Hours
12 Hours
Dry to touch
Terracotta Finish
45°
24 Hours
18 Hours
12 Hours
Dry to touch

Façade repairs can include repairs to lintels, sills, corners and architectural elements.  For best results the repair mortar must be able to be shaved and sculpted.  This requires a quick setting material that will not tear or pull apart when finishing   .

Set is quick setting material that will not tear or pull apart when finishing.  The trained applicator will over-build the repair by 1/4".   When ready to finish (10 - 20 minutes and for 2 hours after initial set) it can be shaved with the edge of a trowel or miter rod to create perfect angles and recreate complex elements.

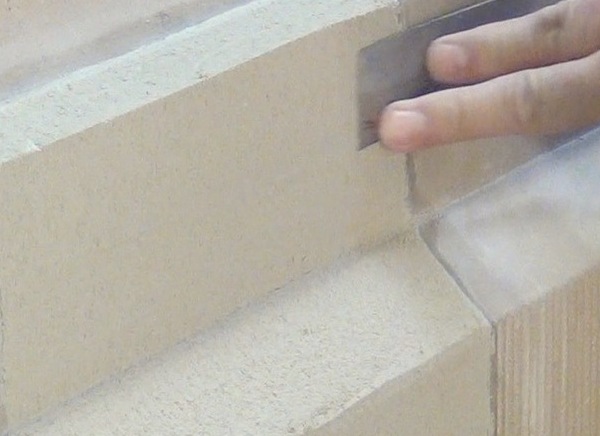

Shaving Set is similar to shaving a hard bar of soap.

Projects Showcase

Rodin College House

Project History

Rodin College House was built from 1971-1972 and is the third of three high rise upperclass dormitories to be built on UPenn’s campus. (see profile for Harrison College House). The Dean of the UPenn School of Fine Arts from 1951-1971, G. Holmes Perkins, assembled a team of architects to design the three “sisters” and included Louis I. Kahn who propelled Penn to the top of the list of American architecture schools in the 1960s.
Over the past forty years, this poured-in-place high rise concrete structure, like its sisters, was suffering from corroding rebar and spalling concrete.
Exposed rebar was coated with ECB corrosion inhibitor, which is an easy product to use on high-rise work since it is single component and water based, eliminating mixing on swing stages. Hand patching was done with Conpro Set, a single component, polymer-modified repair mortar. Conpro Set was the right choice because it is quick setting and can be shaved to replicate the 45 degree angles which dominate the repairs.
The repaired façade was then coated with Primex, a clear penetrating mineral silicate primer used as a pre-treatment for our M3P and M3P Stain products. The building was finished with M3P Stain, a semi-transparent mineral silicate coating, providing long term protection, color uniformity and enhanced aesthetics. Work was completed on the newly refurbished dorm and ready in time for the start of the 2016-2017 academic year.



Wexford Building 90

Project History

The building originally known as Factory 90, was built in 1926, The 474,000 sq. ft. complex consists of reinforced concrete with concrete pedestrian bridges, and is part of the nationally registered Winston-Salem Tobacco Historic District. Current owner Wexford Science + Technology developed the plan to convert the vacant factory space to a modern biotech research center. Once damaged concrete areas were removed to sound substrate, ECB anti-corrosion coating was used on all exposed reinforcing steel. Quick Shot with K-88 Admix was used for shallow horizontal and vertical areas with depths less than 2 inches. Forment, a pump and pour repair mortar, was used for deep repairs. Conpro Set was used for all other repairs. The final coating system consisted of Conpro Lastic elastomeric paint on vertical surfaces and window sills and Color Coat acrylic paint for the undersides of soffits. Both coatings offer excellent water vapor transmission, hiding power, and waterproofing against wind-driven rain and are designed for high-alkaline substrates.
